分布式储能参与调频的即插即用控制策略

doi:10.12141/j.issn.1000-565X.250310

摘要/Abstract

摘要：

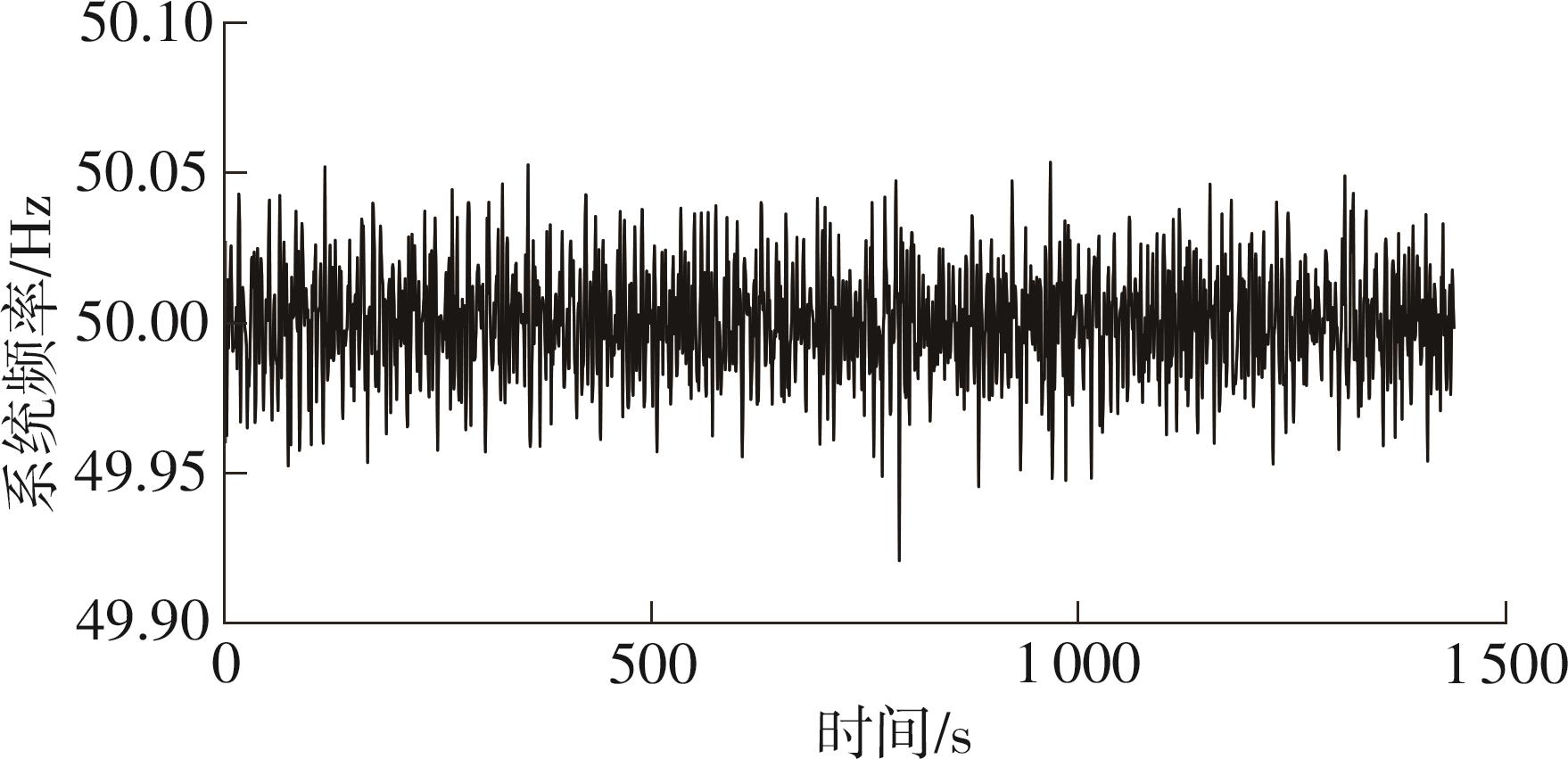

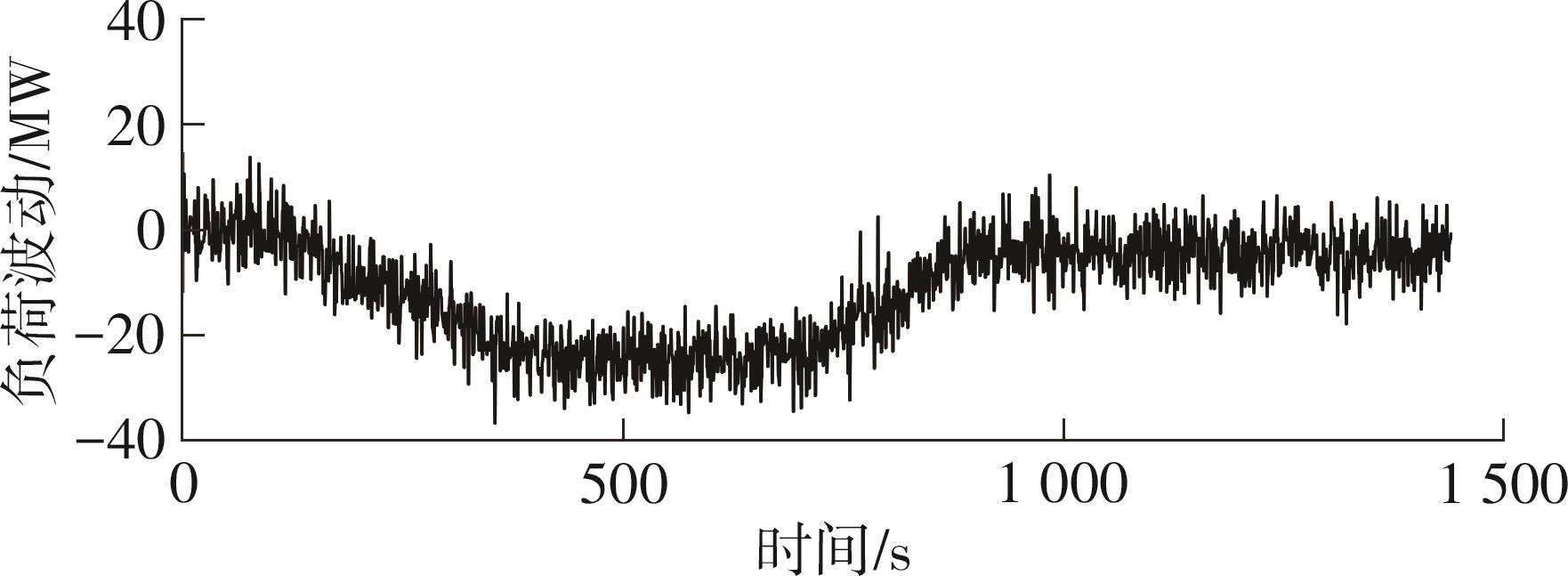

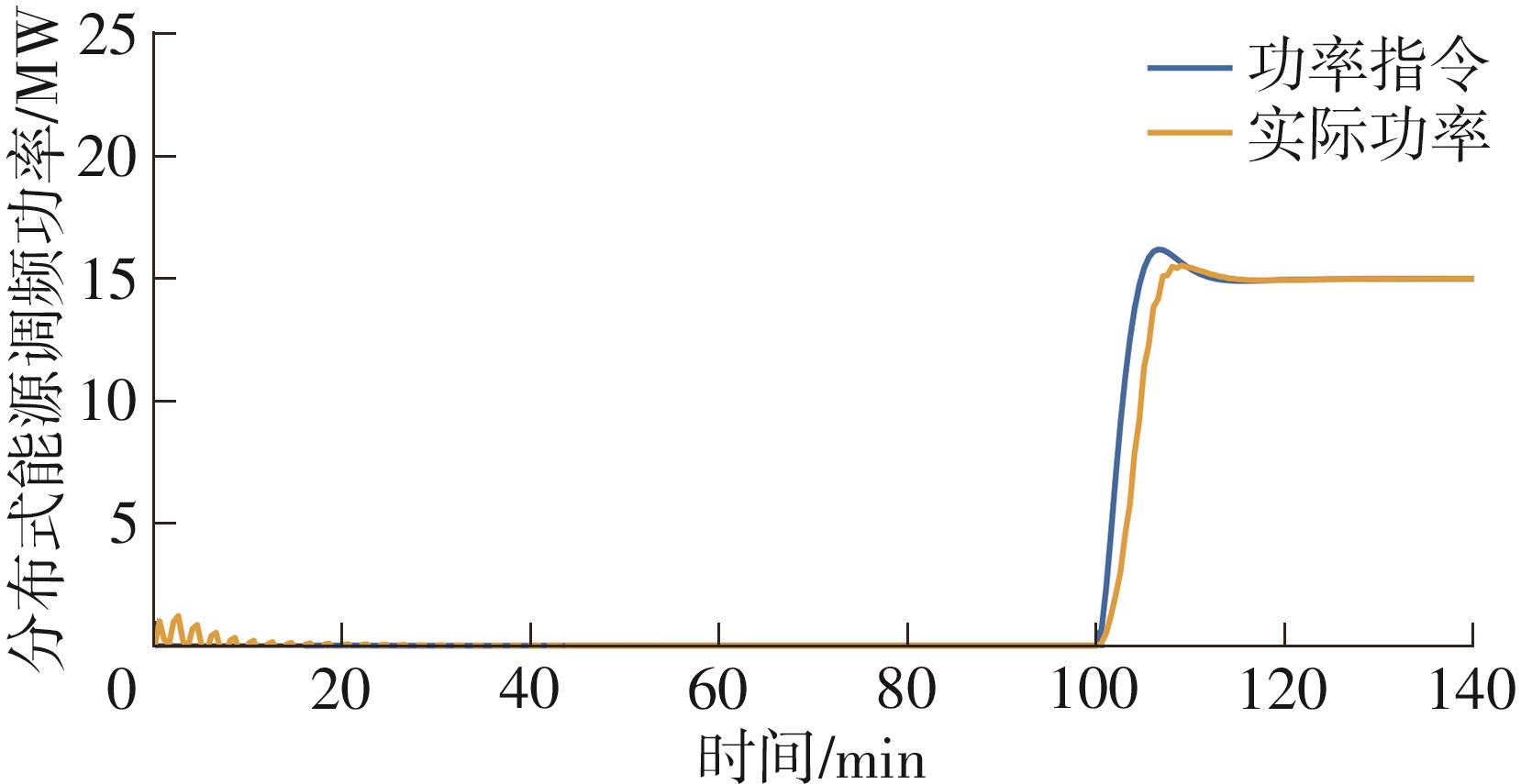

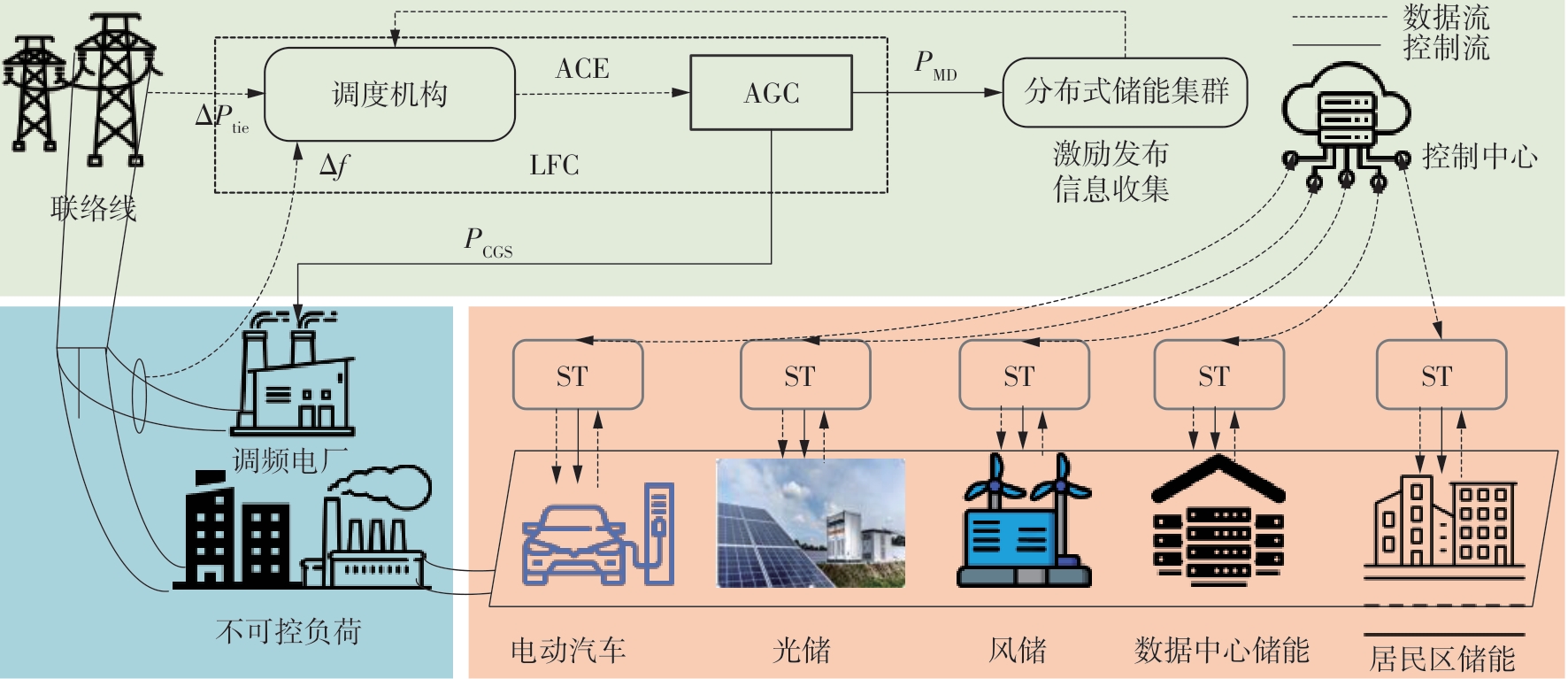

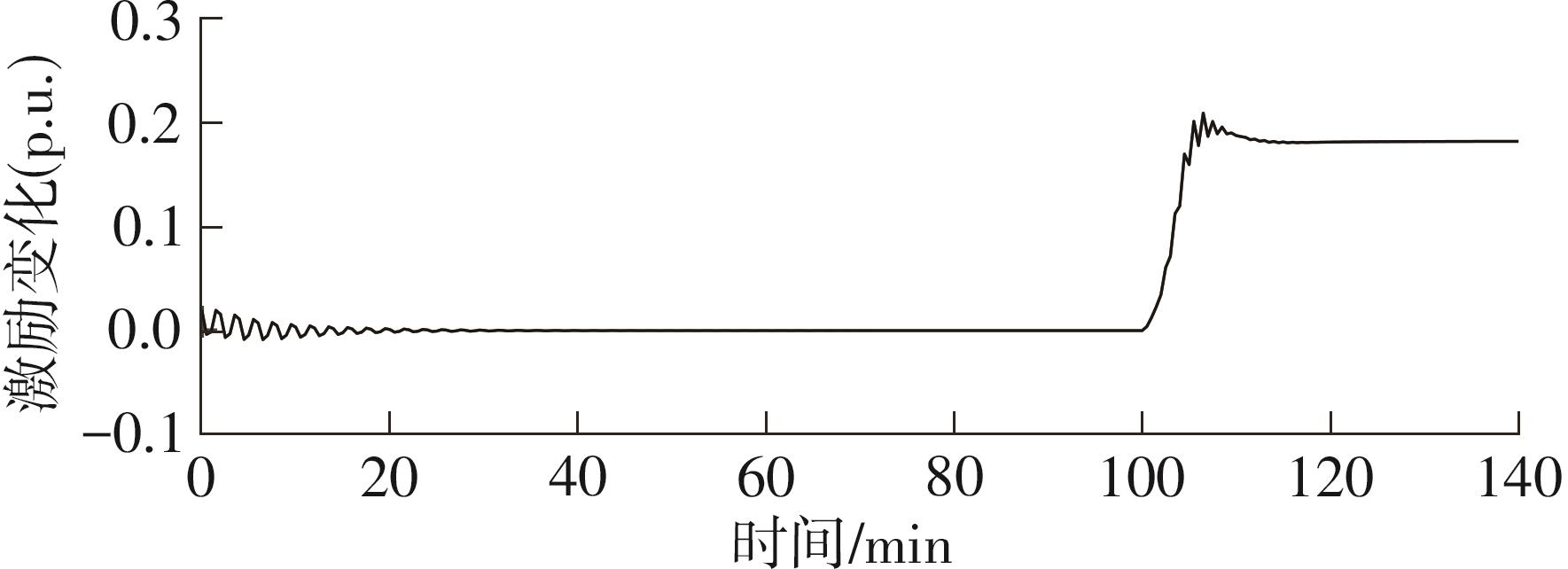

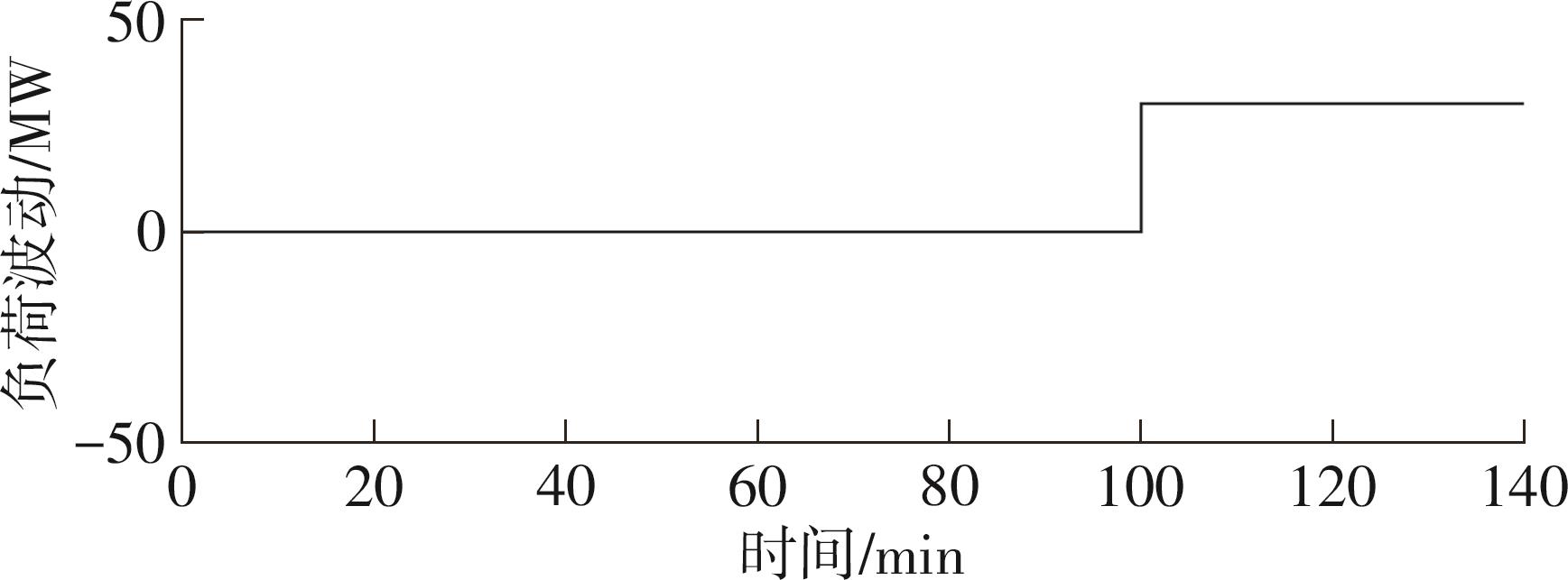

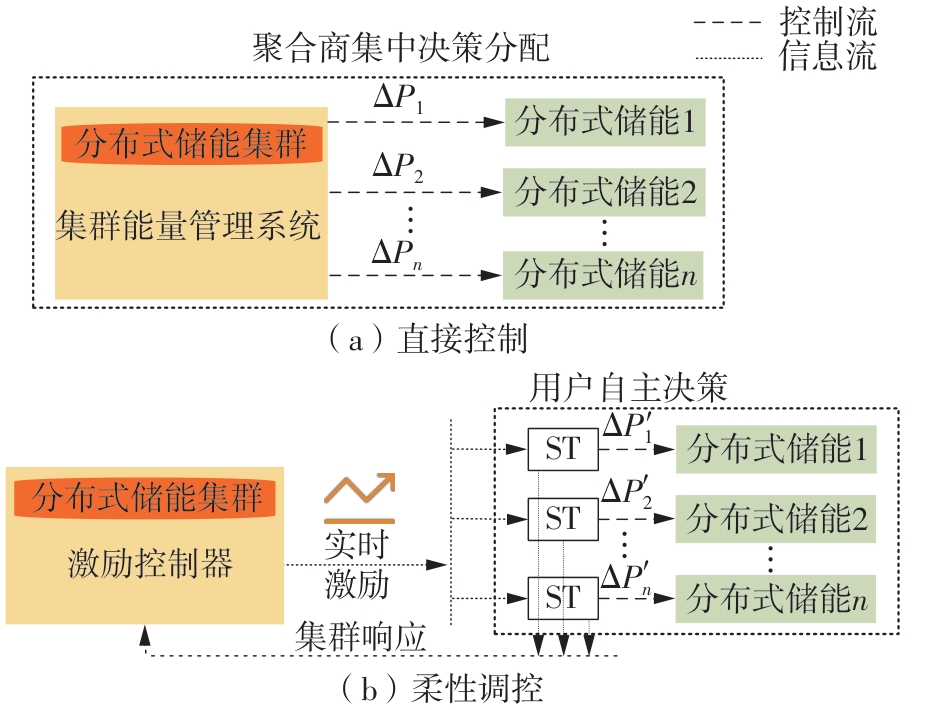

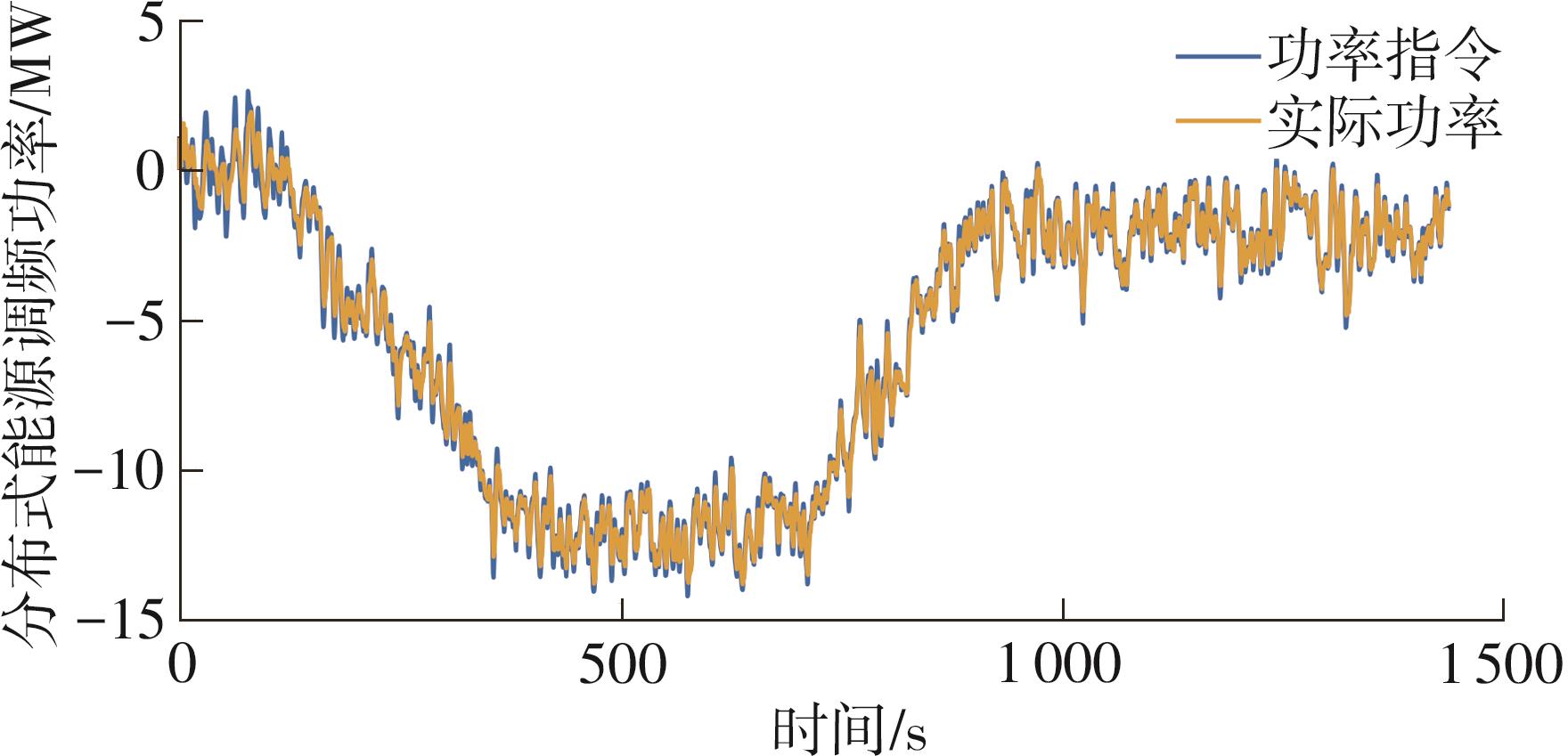

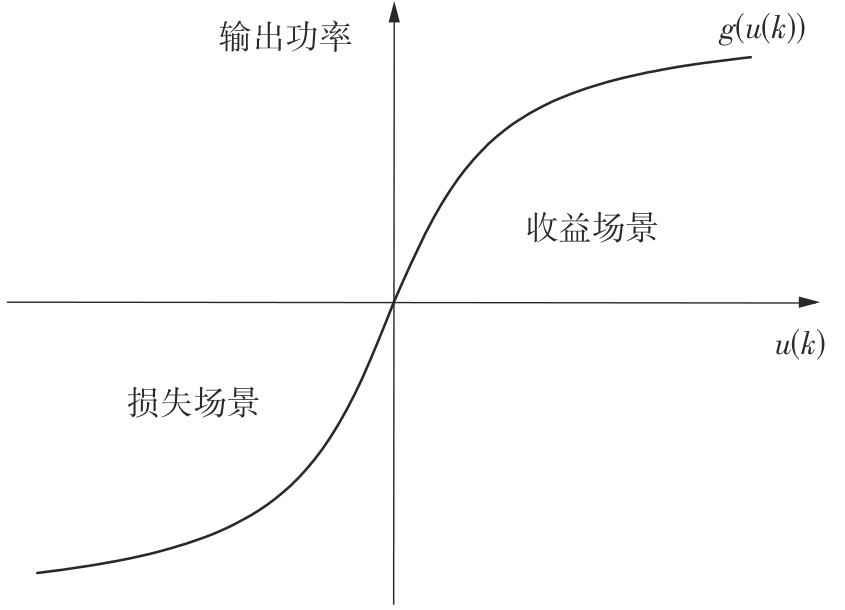

以新能源为主体的新型电力系统频率面临着转动惯量降低、故障冲击增强、调频资源不足的严峻考验，以分布式储能为典型的分布式资源成为系统调频的新型手段和有效补充。然而，用户的自主性需求与电网的确定性要求之间的矛盾限制了分布式储能在辅助调频场景中的应用。针对此问题，首先提出一种分布式储能灵活聚合的柔性调控模型，由聚合器根据功率需求与输出功率偏差生成实时激励来引导分布式储能输出。其次通过前景理论分析了分布式能源用户的决策行为心理，根据非完全理性决策下的用户激励响应特性曲线来构造更符合现实条件的分布式能源参与调频仿真环境。此外，提出了一种面向分布式储能用户广播动态激励信号的灵活控制策略，通过动态线性化把频率调节的非线性问题转换为动态线性化之后的系统参数估计问题，并采用无模型自适应激励控制方法来解决用户响应的不确定性和用户集群建模的困难，通过集群控制系统的实时数据对集群响应模型进行动态线性化并输出最佳的实时激励信号。最后在Matlab/Simulink中对单区域电力系统进行了案例研究，在阶跃负荷波动和连续负荷波动两种场景下，该研究提出的方法都具有良好的频率跟踪效果，最大频率偏差可以控制在0.001 5 p.u.以下，从而验证了该研究提出的激励控制方法的适应性和有效性。

关键词: 分布式能源, 频率调节, 自适应控制, 反馈线性化

Abstract:

The frequency stability of new power systems dominated by renewable energy faces severe challenges due to reduced rotational inertia, increased disturbance impacts,and insufficient frequency regulation resources. Distributed energy，typified by distributed energy storage systems (DESSs), has emerged as a novel and effective means to supplement system frequency regulation. However, the conflict between user’s autonomy demands and the deterministic requirements of the grid limits the application of DESSs in ancillary frequency regulation. To address this issue, this study first proposes a flexible aggregation and control model for DESSs, in which an aggregator generates real-time incentives based on the deviation between power demand and actual output to guide the response of distributed storage units. Next，prospect theory is applied to analyze the decision-making psychology of distributed energy users. Based on the incentive-response characteristic curve under bounded rationality, a simulation environment that better reflects real-world conditions is constructed for studying DER participation in frequency regulation. Furthermore, a flexible control strategy is proposed, which broadcasts dynamic incentive signals to distributed storage users. By employing dynamic linearization, the nonlinear frequency regulation problem is transformed into a parameter estimation task for a dynamically linearized system. A model-free adaptive incentive control method is employed to address uncertainties in user response and the difficulty of modeling user clusters. This method dynamically linearizes the aggregated response model using real-time data from the cluster control system and outputs an optimal real-time incentive signal. Finally, a case study based on a single-area power system is conducted in Matlab/Simulink. Under both step load fluctuation and continuous load fluctuation scenarios, the proposed method demonstrates effective frequency tracking performance, with the maximum frequency deviation controlled within 0.001 5 p.u. This validates the adaptability and effectiveness of the proposed incentive-based control method.

Key words: distributed energy storage, frequency regulation, adaptive control, feedback linearization

中图分类号:

TM73

黄向敏, 曾君, 王鹏旭, 王天伦, 刘俊峰. 分布式储能参与调频的即插即用控制策略[J]. 华南理工大学学报(自然科学版), 2026, 54(3): 21-30.

HUANG Xiangmin, ZENG Jun, WANG Pengxu, WANG Tianlun, LIU Junfeng. Plug-and-Play Control Strategy for Distributed Energy Storage Systems Participating in Frequency Regulation[J]. Journal of South China University of Technology(Natural Science Edition), 2026, 54(3): 21-30.

图/表 12

图1

图2

图3

表1

图4

图5

图6

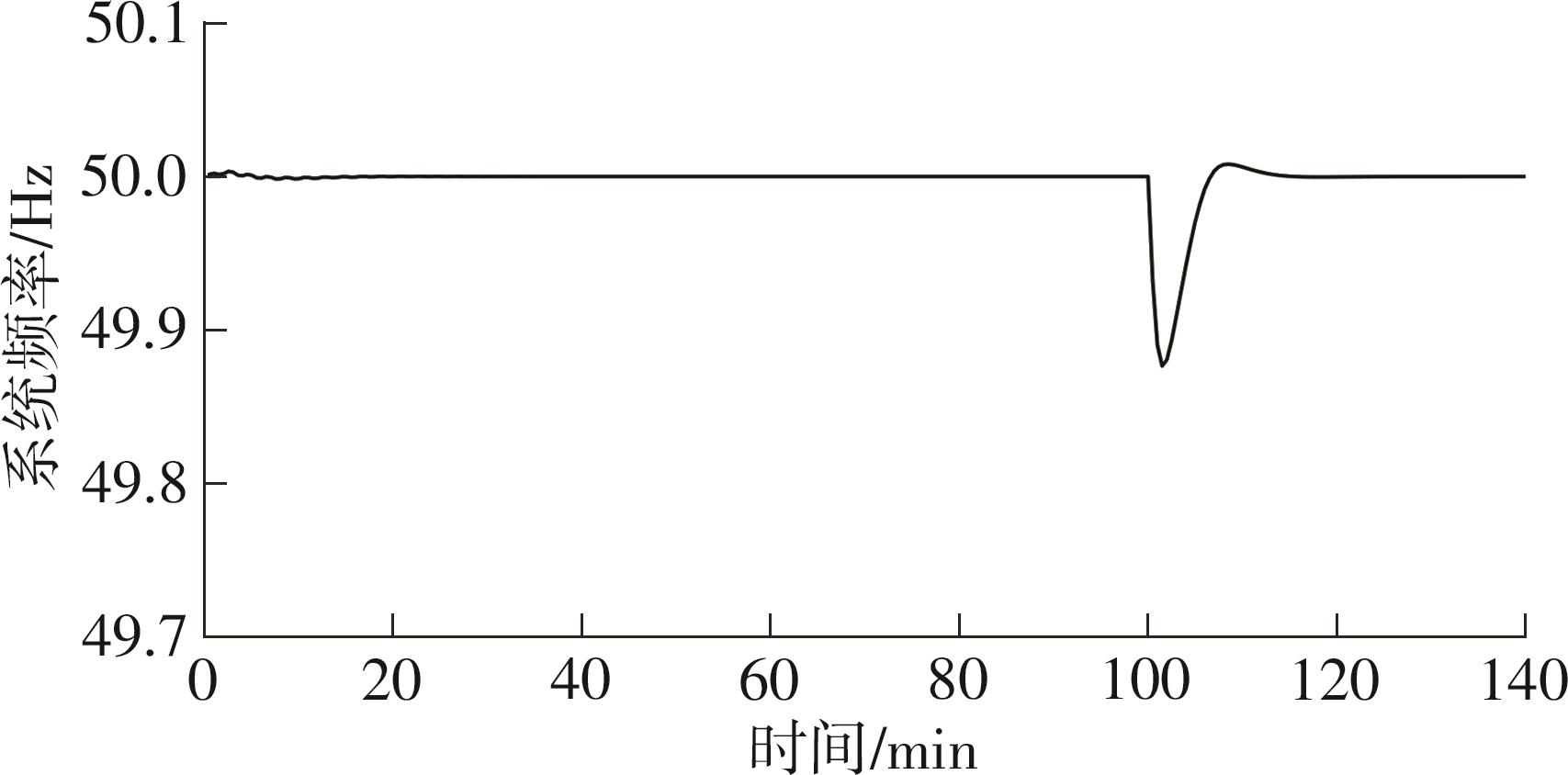

图7

图8

图9

图10

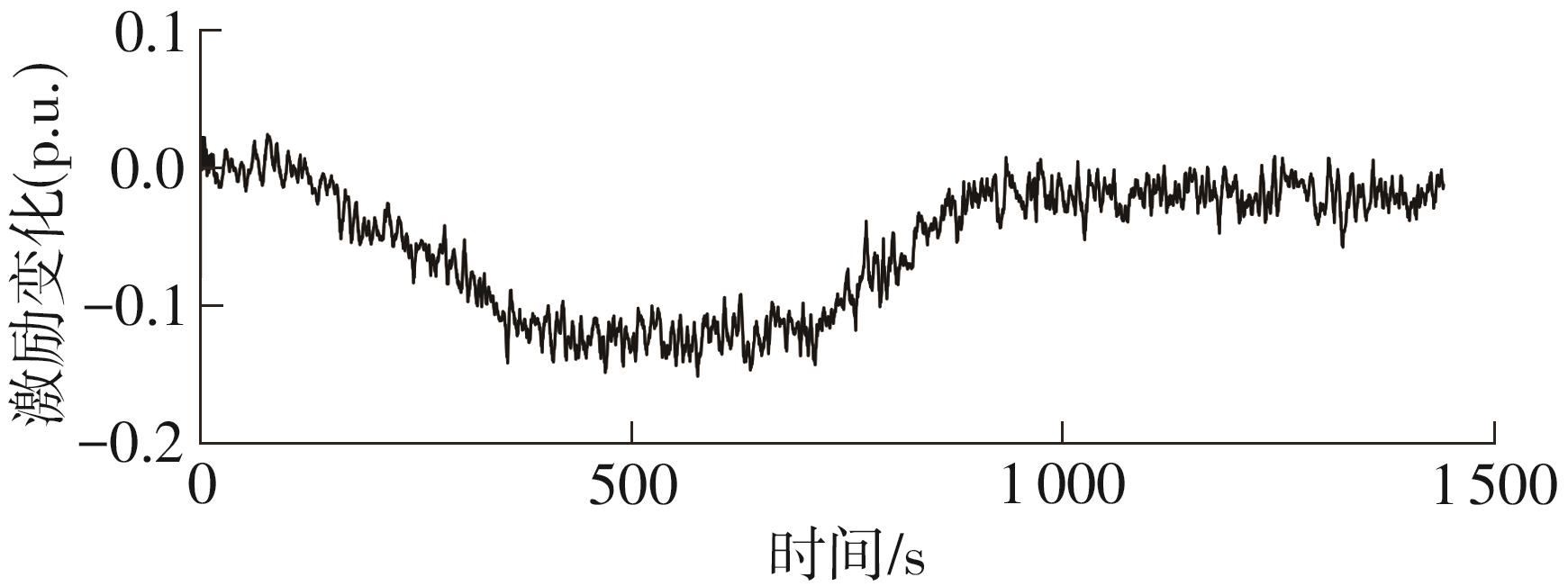

图11

参考文献 27

[1]	赵兵，吴萍，蒋彦翃，等．响应驱动的新型电力系统暂态稳定判别方法综述［J］．电网技术，2025，49（7）：2633-2648.
	ZHAO Bing， WU Ping， JIANG Yanhong， et al ．A survey on response-driven transient stability determination of new generation of power system［J］．Power System Technology，2025，49（7）：2633-2648.
[2]	李智轩，陈亦平，雪映，等．多分区异步互联电力系统频率稳定分析与控制研究综述［J］．电网技术，2024，48（12）：5003-5023.
	LI Zhixuan， CHEN Yiping， XUE Ying， et al ．Frequency stability analysis and control of multi-area asynchronous interconnected systems：a review［J］．Power System Technology， 2024，48（12）： 5003-5023.
[3]	马士聪，郭剑波，汪梦军，等．能量视角下电力系统暂态频率问题初探［J］．电网技术，2024，48（4）：1373-1383.
	MA Shicong， GUO Jianbo， WANG Mengjun， et al ．A preliminary exploration of transient frequency issues in the power system from an energy perspective［J］．Power System Technology，2024， 48（4）：1373-1383.
[4]	衣立东，蒙金有，何川．考虑系统一次频率响应特性的新型电力系统源网荷储协调鲁棒规划［J］．电网技术，2023，47（9）：3659-3672.
	YI Lidong， MENG Jinyou， HE Chuan ．Source-grid-load-storage robust coordinated planning of new-type power system considering primary frequency response characteristics［J］．Power System Technology，2023，47（9）：3659-3672.
[5]	傅国斌，杨凯璇，孙海斌，等．低惯量电力系统频率安全约束优化运行研究综述与展望［J］．中国电力， 2025， 58（9）： 148-163.
	FU Guobin， YANG Kaixuan， SUN Haibin，et al ．Frequency security constrained optimal operation of low-inertia power systems： review and prospects［J］．Electric Power， 2025， 58（9）： 148-163.
[6]	李佳旭，吴俊勇，李栌苏，等．电力系统频率安全评估与紧急控制研究综述［J］．高电压技术，2025，51 （4）： 1817-1833.
	LI Jiaxu， WU Junyong， LI Lusu，et al ．Review on frequency safety assessment and emergency control of power system［J］．High Voltage Engineering， 2025，51 （4）： 1817-1833.
[7]	沈赋，曹旸，徐潇源，等．高比例可再生能源电力系统惯量预测方法研究综述［J］．电力建设， 2025，46 （8）： 116-128.
	SHEN Fu， CAO Yang， XU Xiaoyuan，et al ．A review of inertia prediction methods for power system with high penetration renewable energy sources［J］．Electric Power Construction， 2025， 46 （8）： 116-128.
[8]	ZHANG F， HU Z， XIE X， et al ．Assessment of the effectiveness of energy storage resources in the frequency regulation of a single-area power system［J］．IEEE Transactions on Power Systems，2017，32（5）：3373-3380.
[9]	段潇涵，孙丹，赵琛，等．计及调频能力和经济效益的储能集群多状态区间优化策略［J］．电力系统自动化， 2024， 48 （5）： 58-67.
	DUAN Xiaohan， SUN Dan， ZHAO Chen，et al ．Multi-state interval optimization strategy for energy storage clusters considering frequency regulation capability and economic benefits［J］．Automation of Electric Power Systems， 2024， 48 （5）： 58-67.
[10]	冀瑞强，胡健，张晓杰．基于合作博弈的城市楼宇集群分布式储能容量共享［J］．电力建设，2024，45 （2）： 115-126.
	JI Ruiqiang， HU Jian， ZHANG Xiaojie ．Energy sto-rage capacity sharing of urban building cluster based on cooperative game［J］．Electric Power Construction，2024， 45 （2）： 115-126.
[11]	XIE P， SHI D， LI Y ．Provision of two-area automatic generation control by demand-side electric vehicle battery swapping stations［J］．Journal of Electrical Engineering & Technology， 2016，11（2）：300-308.
[12]	ZHANG S， MISHRA Y， SHAHIDEHPOUR M ．Utilizing distributed energy resources to support frequency regulation services［J］．Applied Energy，2017，206：1484-1494.
[13]	CHEN Y， XU M， ZENG J， et al ．Modelling and analysis of electric vehicles participating in the convergence and multiplexing of energy storage system based on parallel CPSS［J］．Control and Decision，2019，34（11）：2428-2437.
[14]	汪梦军，郭剑波，马士聪，等．新能源电力系统暂态频率稳定分析与调频控制方法综述［J］．中国电机工程学报，2023，43（5）： 1672-1694.
	WANG Mengjun， GUO Jianbo， MA Shicong， et al ．Review of transient frequency stability analysis and frequency regulation control methods for renewable power systems［J］．Proceedings of the CSEE，2023，43（5）：1672-1694.
[15]	温可瑞，李卫东，孙乔，等．用户侧分布式储能参与一次调频的日内前瞻-值函数近似策略［J］．电力系统自动化，2022，46（20）：33-42.
	WEN Kerui， LI Weidong， SUN Qiao，et al ．Intra-day lookahead-value function approximation strategy of user-side distributed energy storage participating in primary frequency regulation［J］．Automation of Electric Power Systems，2022，46（20）： 33-42.
[16]	吴珊，边晓燕，张菁娴，等．面向新型电力系统灵活性提升的国内外辅助服务市场研究综述［J］．电工技术学报，2023，38（6）：1662-1677.
	WU Shan， BIAN Xiaoyan， ZHANG Jingxian， et al ．A review of domestic and foreign ancillary services market for improving flexibility of new power system［J］．Transactions of China Electrotechnical Society， 2023，38（6）： 1662-1677.
[17]	曾君，胡家健，徐铭康，等．储能汇聚参与辅助调频服务的协同优化算法［J］．控制理论与应用，2021，38（7）：1051-1060.
	ZENG Jun， HU Jia-jian， XU Ming-kang，et al ．Collaborative optimization algorithm for aggregating energy storage in frequency modulation service［J］．Control Theory & Applications，2021，38（7）：1051-1060.
[18]	GE S， HE X， LIU H， et al ．Frequency coordinated control strategy based on sliding mode method for a microgrid with hybrid energy storage system［J］．IET Generation Transmission & Distribution，1986，15（13）：1962-1971.
[19]	CHEKIRED D， KHOUKHI L， MOUFTAH T ．Decentralized cloud-SDN architecture in smart grid： a dynamic pricing model［J］．IEEE Transactions on Industrial Informatics， 2018， 14（3）： 1220-1231.
[20]	RAHBARI-ASR N， CHOW M， CHEN J， et al ．Distributed real-time pricing control for large-scale unidirectional V2G with multiple energy suppliers［J］．IEEE Transactions on Industrial Informatics， 2016，12（5）： 1953-1962.
[21]	GELAZANSKAS L， GAMAGE K ．Demand side ma-nagement in smart grid： a review and proposals for future direction［J］．Sustainable Cities and Society，2014， 11： 22-30.
[22]	WEI C， SHANGGUAN X， HE Y， et al ．Delay-dependent stability evaluation for temperature control load participating in load frequency control of microgrid［J］．IEEE Transactions on Industrial Electronics，2025，72（1）： 449-459.
[23]	ALAGOZ B， KAYGUSUZ A ．Dynamic energy pricing by closed-loop fractional-order PI control system and energy balancing in smart grid energy markets［J］．Transactions of the Institute of Measurement and Control， 2016， 38（5）： 565-578.
[24]	KAYGUSUZ A ．Closed loop elastic demand control by dynamic energy pricing in smart grids［J］．Energy，2019， 176： 596-603.
[25]	IZUMI S， AZUMA S. Real-time pricing by data fusion on networks［J］．IEEE Transactions on Industrial Informatics， 2018， 14（3）： 1175-1185.
[26]	SHANGGUAN X C， ZHANG C K， YONG H，et al ．Robust load frequency control for power system consi-dering transmission delay and sampling period［J］．IEEE Transactions on Industrial Informatics，2021，17（8）：5292-5303.
[27]	何常胜，董鸿魁，翟鹏，等．水电机组一次调频与AGC典型控制策略的工程分析及优化［J］．电力系统自动化， 2015， 39 （3）：146-151.
	HE Changsheng， DONG Hongkui， ZHAI Peng，et al ．Engineering analysis and optimization on typical control strategies of primary frequency modulation and automatic generation control of hydropower units［J］．Automation of Electric Power Systems，2015，39（3）：146-151.

参数	数值		数值		数值
η	0.3	μ	15	m₁	7
λ	18	ρ	0.1	m₂	6
T_MD	1	q₁	0.03
α	0.3	q₂	0.03
