Effect of Ozone on Polycyclic Aromatic Hydrocarbon Formation in Combustion of Biodiesel Surrogate

doi:10.12141/j.issn.1000-565X.240235

Abstract

Abstract:

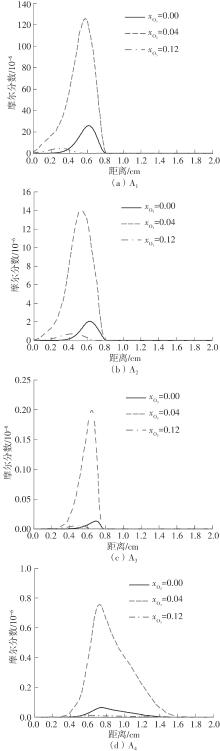

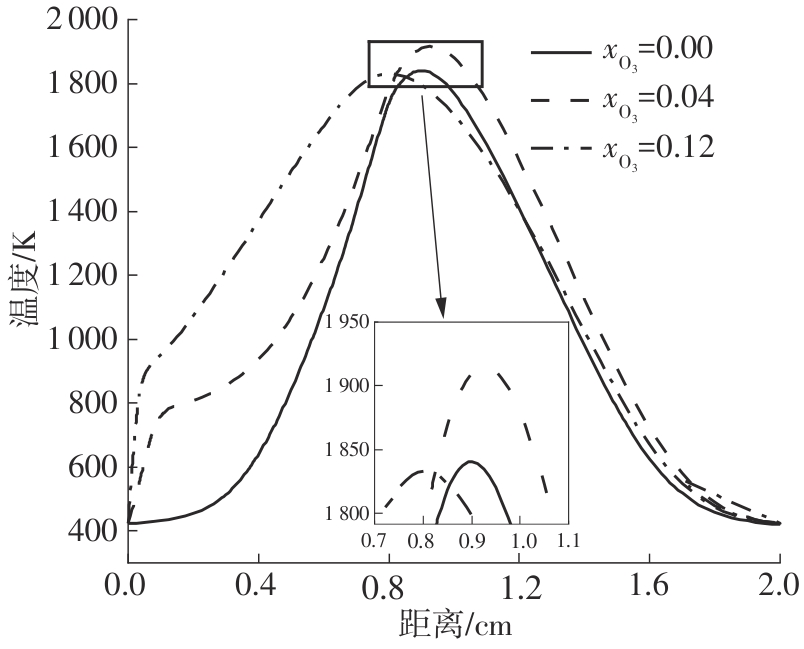

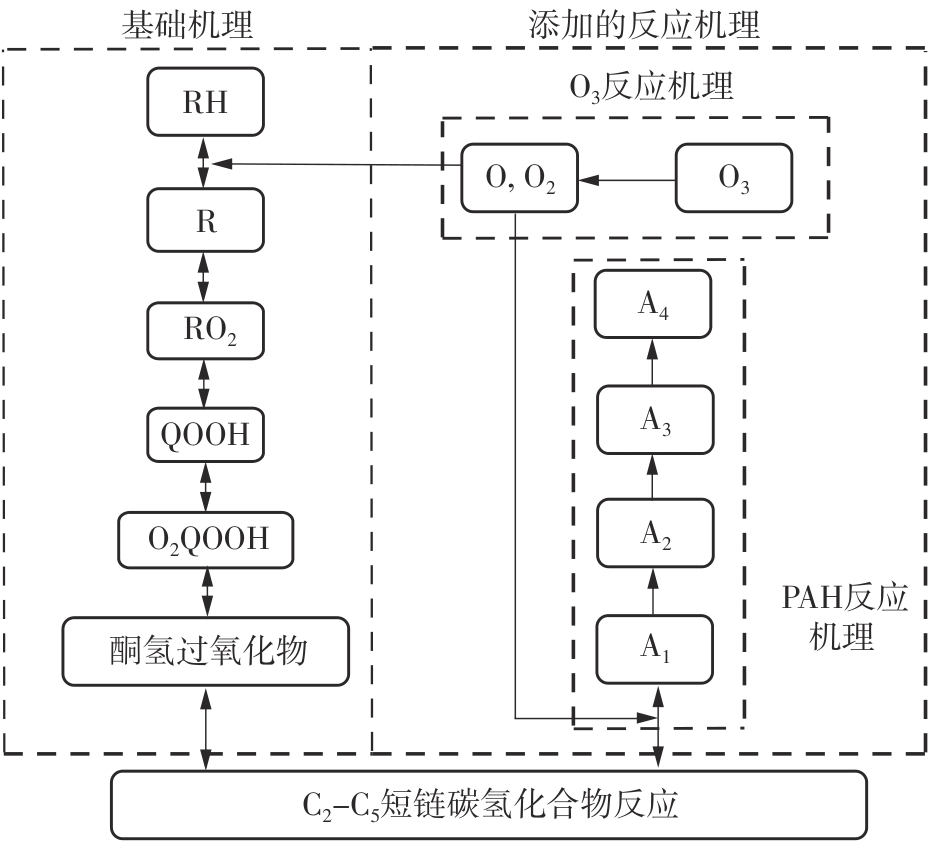

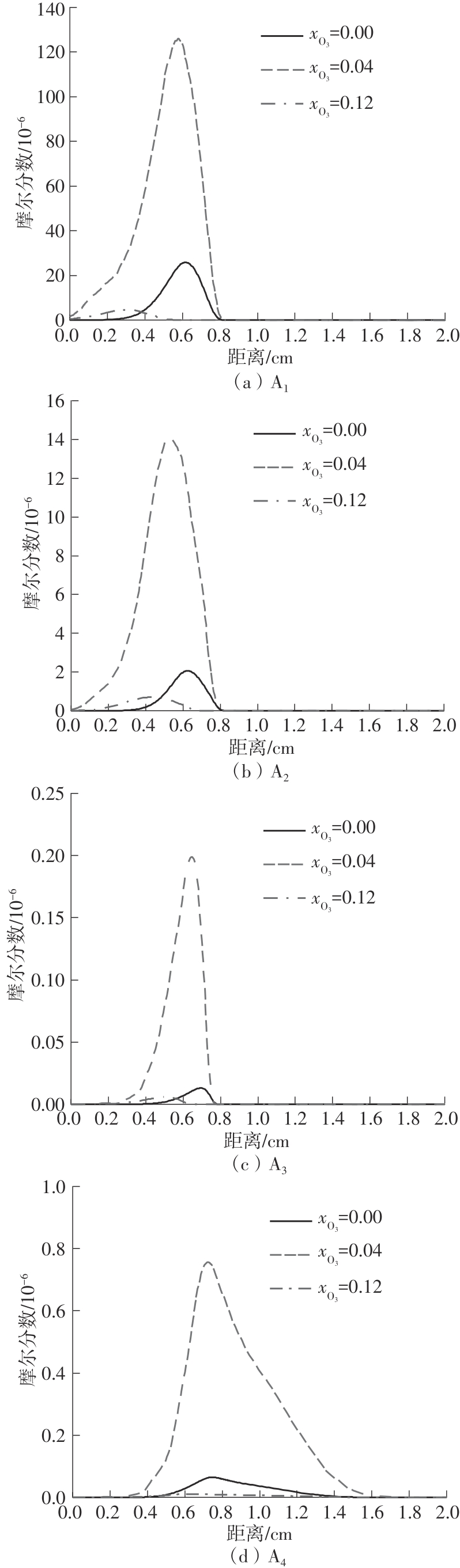

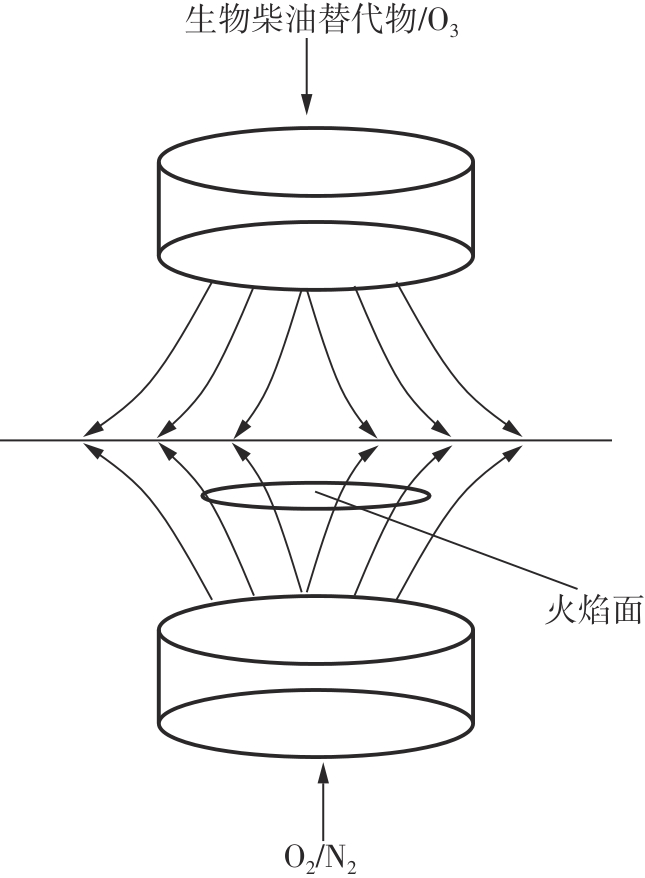

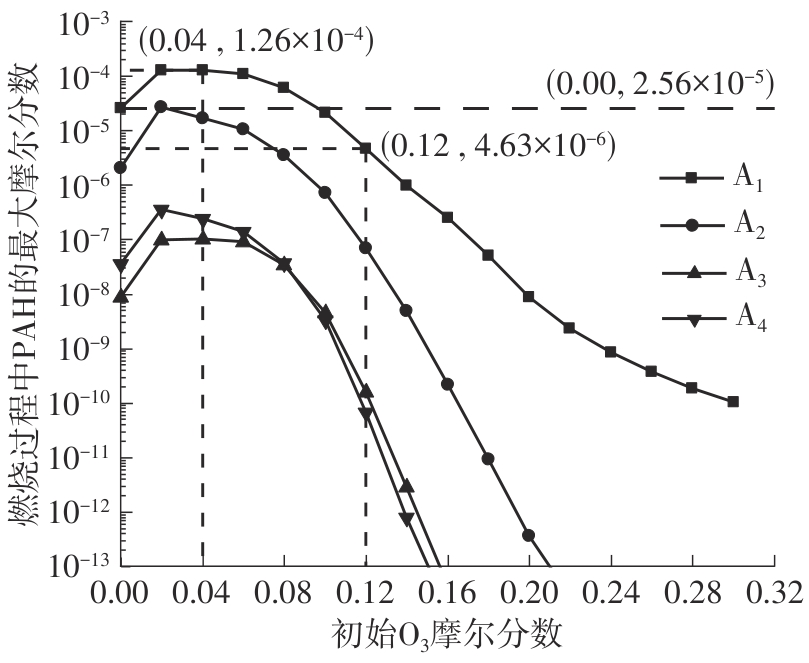

Studying the effect of Ozone (O₃) on polycyclic aromatic hydrocarbon (PAH) during the combustion process of biodiesel can provide new insights for reducing soot emissions. A skeletal reaction mechanism of biodiesel surrogates coupled with an O₃ reaction mechanism and a PAH reaction mechanism was constructed for modeling the effect and mechanism of O₃ on PAH formation in a counterflow flame of biodiesel surrogates. The final mechanism consists of 138 species and 608 reactions. Analysis show that the addition of O₃ creates a localized rapid temperature rise zone on the fuel side. As the initial O₃ mole fraction increases, the temperature rise rate in this zone intensifies and its position shifts closer to the fuel outlet, resulting from the preliminary oxidation of the fuel releasing heat. Furthermore, the maximum mole fraction of PAH initially increases and subsequently decreases with increasing initial O₃ mole fraction. When initial O₃ mole fraction increases to 0.04, the maximum mole fraction of major PAH such as benzene (A₁), naphthalene (A₂), anthracene (A₃), and pyrene (A₄) are 4.57, 6.76, 16.16, 12.38 times that at initial O₃ mole fraction of 0.00, respectively. The addition of O₃ has a significant impact on the concentration of PAH, and has the greatest impact on A₃. At the same time, the pathway of benzene (A₁) generation shifts from C₂H₂-dominated to C₂H₃-dominated mechanisms. And when initial O₃ mole fraction increases to 0.12, the maximum mole fractions of A₁, A₂, A₃, and A₄ are 0.880, 0.357, 0.375, and 0.143 times that at initial O₃ mole fraction of 0.00. It is because that the C₂H₃ radicals are oxidized, thereby inhibiting the production of A₁.

Key words: biodiesel, polycyclic aromatic hydrocarbon, ozone, nitrogen oxides, reaction kinetics

CLC Number:

TK16

GAN Yunhua, LIU Zhuolong, KUANG Hualin, HAN Yanjie, LI Hua. Effect of Ozone on Polycyclic Aromatic Hydrocarbon Formation in Combustion of Biodiesel Surrogate[J]. Journal of South China University of Technology(Natural Science Edition), 2025, 53(7): 11-20.

Figures/Tables 14

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

References 29

[1]	梅德清，俞玥，高亚平，等．多组分燃料液滴高温蒸发耦合机制研究［J］．华南理工大学学报（自然科学版），2023，51（3）：33-40，82.
	MEI Deqing， YU Yue， GAO Yaping，et al ．Coupling mechanism of high-temperature evaporation of multi-component fuel droplets［J］．Journal of South China University of Technology （Natural Science Edition），2023，51（3）：33-40，82.
[2]	ISSARIYAKUL T， DALAI A K ．Biodiesel from vegetable oils［J］．Renewable and Sustainable Energy Reviews，2014，31：446-471.
[3]	WESTBROOK C K， NAIK C V， HERBINET O，et al ．Detailed chemical kinetic reaction mechanisms for soy and rapeseed biodiesel fuels［J］．Combustion and Flame，2011，158（4）：742-755.
[4]	FISHER E M， PITZ W J， CURRAN H J，et al ．Detailed chemical kinetic mechanisms for combustion of oxygenated fuels［J］．Proceedings of the Combustion Institute，2000，28（2）：1579-1586.
[5]	HERBINET O， PITZ W J， WESTBROOK C K ．Detailed chemical kinetic mechanism for the oxidation of biodiesel fuels blend surrogate［J］．Combustion and Flame，2010，157（5）：893-908.
[6]	LUO Z， PLOMER M， LU T，et al ．A reduced mechanism for biodiesel surrogates for compression ignition engine applications［J］．Fuel，2012，99：143-153.
[7]	NI Z， LI F， WANG H ．Simplification of the combustion mechanism of Jatropha biodiesel surrogate fuel and reaction path analysis［J］．Energy，2023，282：128859/1-9.
[8]	王晶，张漫．不同前驱体模型对航空煤油扩散火焰碳烟颗粒生成的影响研究［J］．工程热物理学报，2021，42（12）：3286-3295.
	WANG Jing， ZHANG Man ．Study on the influence of different soot inception models on the soot particles formation in a aviation kerosene diffusion flame［J］．Journal of Engineering Thermophysics，2021，42（12）：3286-3295.
[9]	SLAVINSKAYA N A， FRANK P ．A modelling study of aromatic soot precursors formation in laminar methane and ethene flames［J］．Combustion and Flame，2009，156（9）：1705-1722.
[10]	WANG H， DENEYS R R， YAO M F，et al ．Development of an n-heptane-n-butanol-PAH mechanism and its application for combustion and soot prediction［J］．Combustion and Flame，2013，160（3）：504-519.
[11]	DONG X， CHANG Y， NIU B，et al ．Development of a practical reaction model of polycyclic aromatic hydrocarbon （PAH） formation and oxidation for diesel surrogate fuel［J］．Fuel，2020，267：117159/1-14.
[12]	WU Y X， LIU F X， SUN Y L，et al ．Effects of carbon dioxide and water vapor addition on benzene and PAH formation in a laminar premixed CH₄/O₂/Ar flame［J］．Combustion Science and Technology，2019，191（10）：1866-1897.
[13]	LIU F， DWORKIN S B， THOMSON M J，et al ．Modeling DME addition effects to fuel on PAH and soot in laminar coflow ethylene/air diffusion flames using two PAH mechanisms［J］．Combustion Science and Technology，2012，184（7/8/9）：966-979.
[14]	ZENG W ．Single zone simulation of polycyclic aromatic hydrocarbon formation in n-heptane HCCI combustion［J］．Advanced Materials Research，2011，236/237/238：525-529.
[15]	LI S， GAO J， HUANG C，et al ．Development of a reduced n-heptane/toluene/unsaturated furans-PAH reaction mechanism for dual-fuel engine applications［J］．Fuel，2022，317：123466/1-15.
[16]	WANG H， LI Y， IQBAL Z，et al ．A comparison study on the combustion and sooting characteristics of base engine oil and n-dodecane in laminar diffusion flames［J］．Applied Thermal Engineering，2019，158：113812/1-6.
[17]	LIU X L， WANG H， WEI L X，et al ．Development of a reduced toluene reference fuel （TRF）-2，5-dimethylfuran-polycyclic aromatic hydrocarbon （PAH） mechanism for engine applications［J］．Combustion and Flame，2016，165：453-465.
[18]	YAMADA H， YOSHII M， TEZAKI A ．Chemical mechanistic analysis of additive effects in homogeneous charge compression ignition of dimethyl ether［J］．Proceedings of the Combustion Institute，2005，30（2）：2773-2780.
[19]	FOUCHER F， HIGELIN P， MOUNAÏM-ROUSSELLE C，et al ．Influence of ozone on the combustion of n-heptane in a HCCI engine［J］．Proceedings of the Combustion Institute，2013，34（2）：3005-3012.
[20]	MASURIER J， FOUCHER F， DAYMA G，et al ．Investigation of iso-octane combustion in a homogeneous charge compression ignition engine seeded by ozone，nitric oxide and nitrogen dioxide［J］．Proceedings of the Combustion Institute，2015，35（3）：3125-3132.
[21]	SEIGNOUR N， MASURIER J， JOHANSSON B，et al ．Ozone-assisted combustion of hydrogen：a comparison with isooctane［J］．International Journal of Hydrogen Energy，2019，44（26）：13953-13963.
[22]	LIU S， LIN Z L， ZHANG H，et al ．Impact of ammonia addition on knock resistance and combustion performance in a gasoline engine with high compression ratio［J］．Energy，2023，262：125458/1-12.
[23]	ZHOU Y， GAN Y H， ZHANG C Y，et al ．Numerical study for influence of ozone on the combustion of biodiesel surrogates in a homogeneous charge compression ignition engine［J］．Fuel Processing Technology，2022，225：107039/1-12.
[24]	SLAVINSKAYA N A， RIEDEL U， DWORKIN S B，et al ．Detailed numerical modeling of PAH formation and growth in non-premixed ethylene and ethane flames［J］．Combustion and Flame，2012，159（3）：979-995.
[25]	HALTER F， HIGELIN P， DAGAUT P ．Experimental and detailed kinetic modeling study of the effect of ozone on the combustion of methane［J］．Energy & Fuels，2011，25：2909-2916.
[26]	SARATHY S M， THOMSON M J， PITZ W J，et al ．An experimental and kinetic modeling study of methyl decanoate combustion［J］．Proceedings of the Combustion Institute，2011，33（1）：399-405.
[27]	HE Y T， LUO Y， ZHANG Q，et al ．Effects of air-side dimethyl ether premixing on combustion characteristics of nonpremixed biodiesel/air counterflow flames［J］．Fuel，2022，316：123306/1-11.
[28]	INAL F， SENKAN S M ．Effects of equivalence ratio on species and soot concentrations in premixed n-heptane flames［J］．Combustion and Flame，2002，131（1/2）：16-28.
[29]	SOLMAZ E， BISETTI F ．Flamelet chemistry model for efficient axisymmetric counterflow flame simulations with realistic nozzle geometries and gravitational body force［J］．Combustion Theory and Modelling，2020，24（5）：926-952.
