Analysis of Shear Force Transfer Mechanism of Reinforced Concrete Beams Without Stirrups

doi:10.12141/j.issn.1000-565X.250066

Abstract

Abstract:

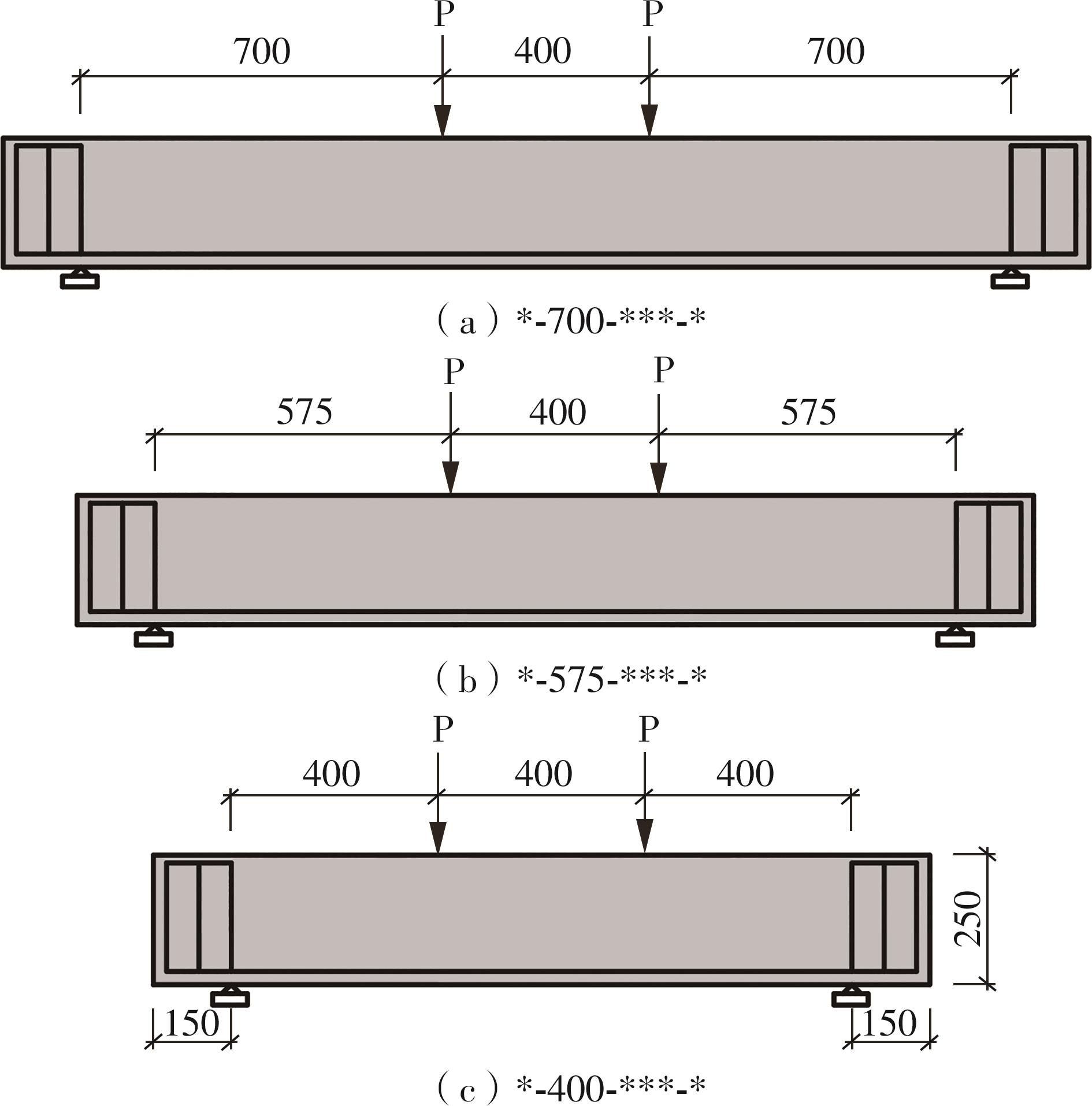

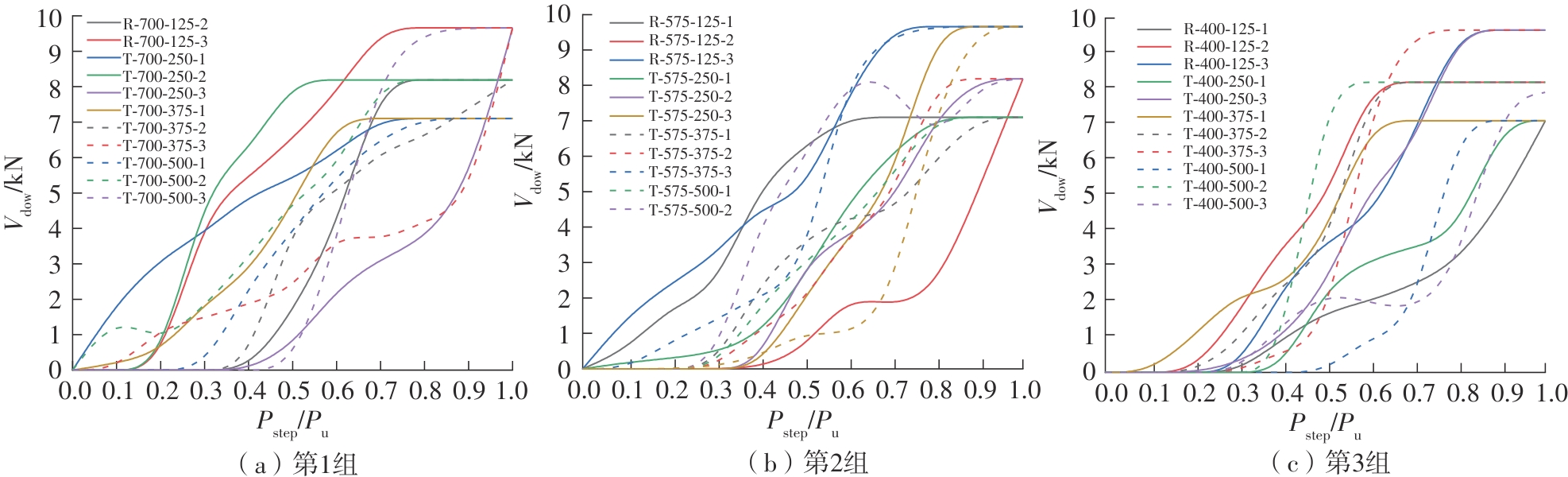

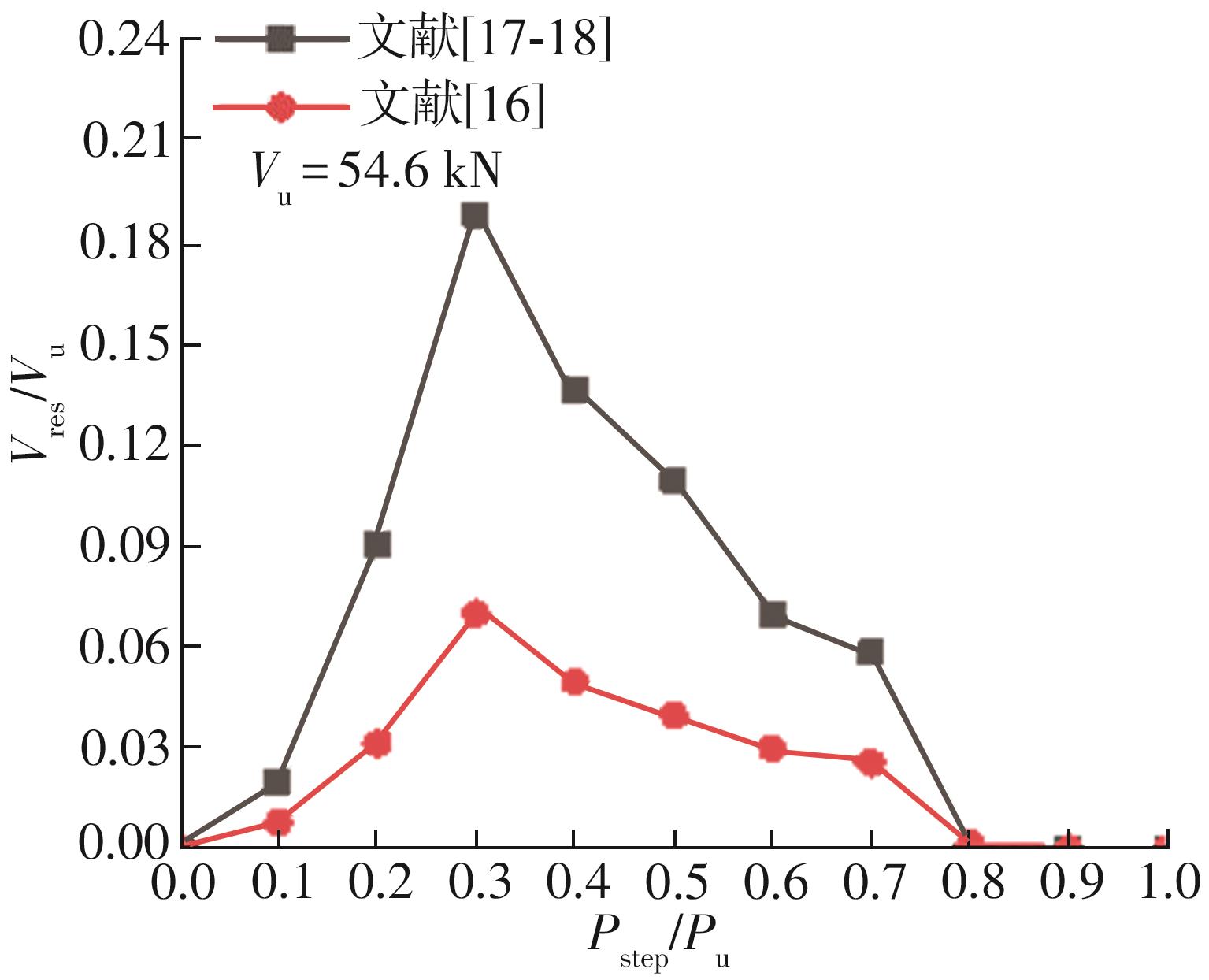

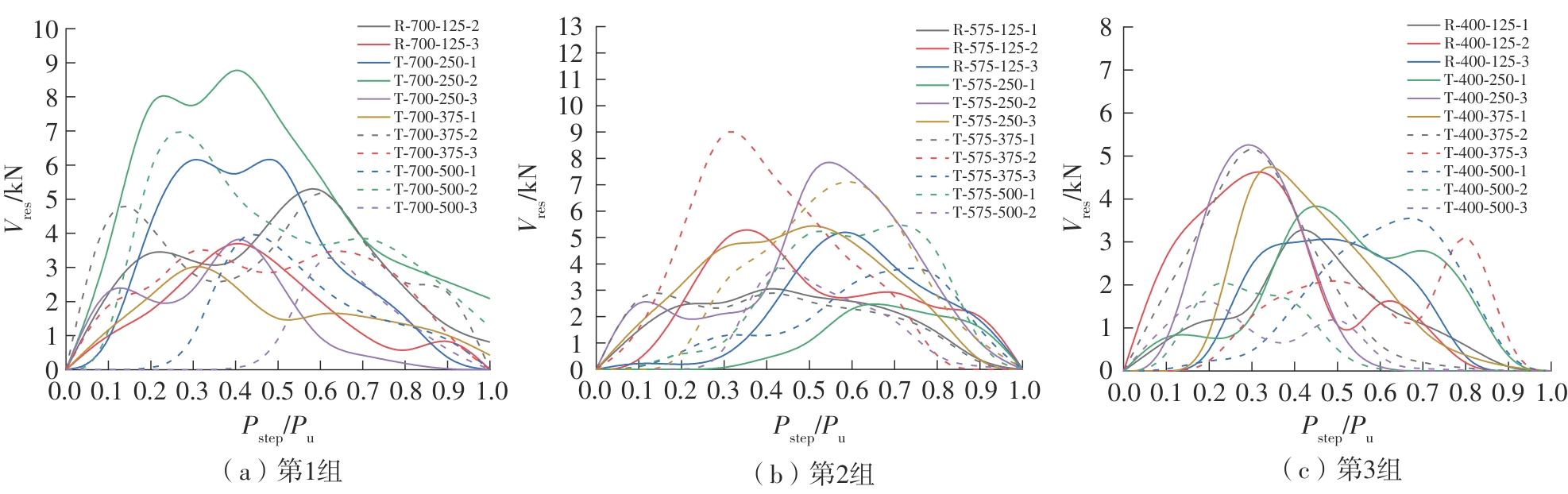

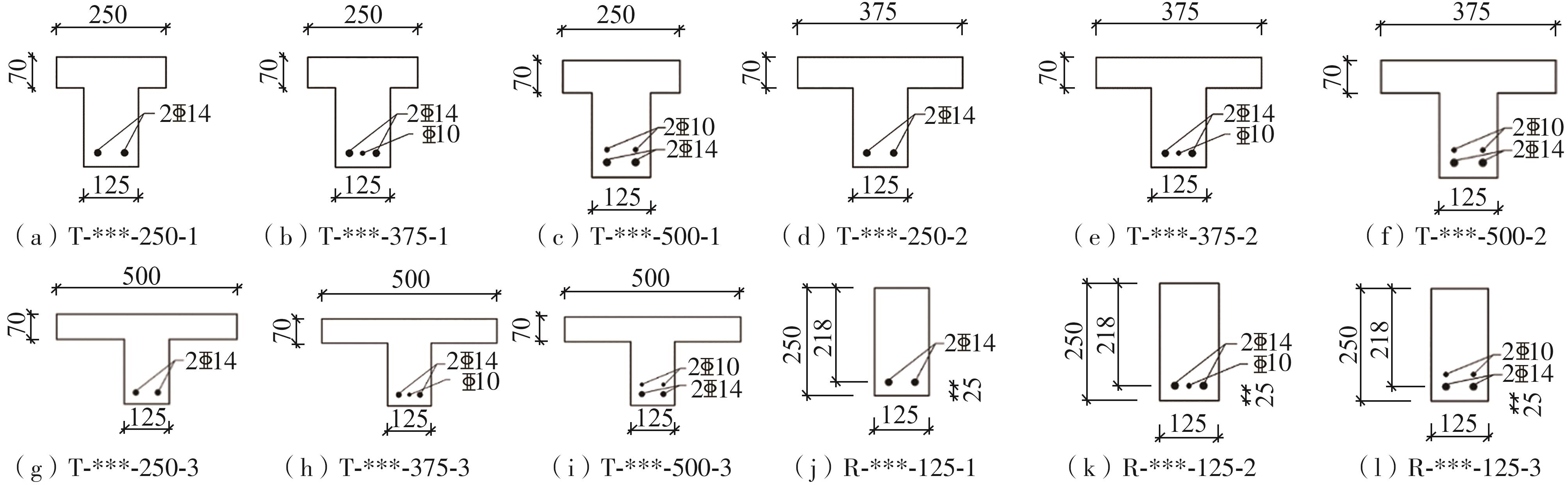

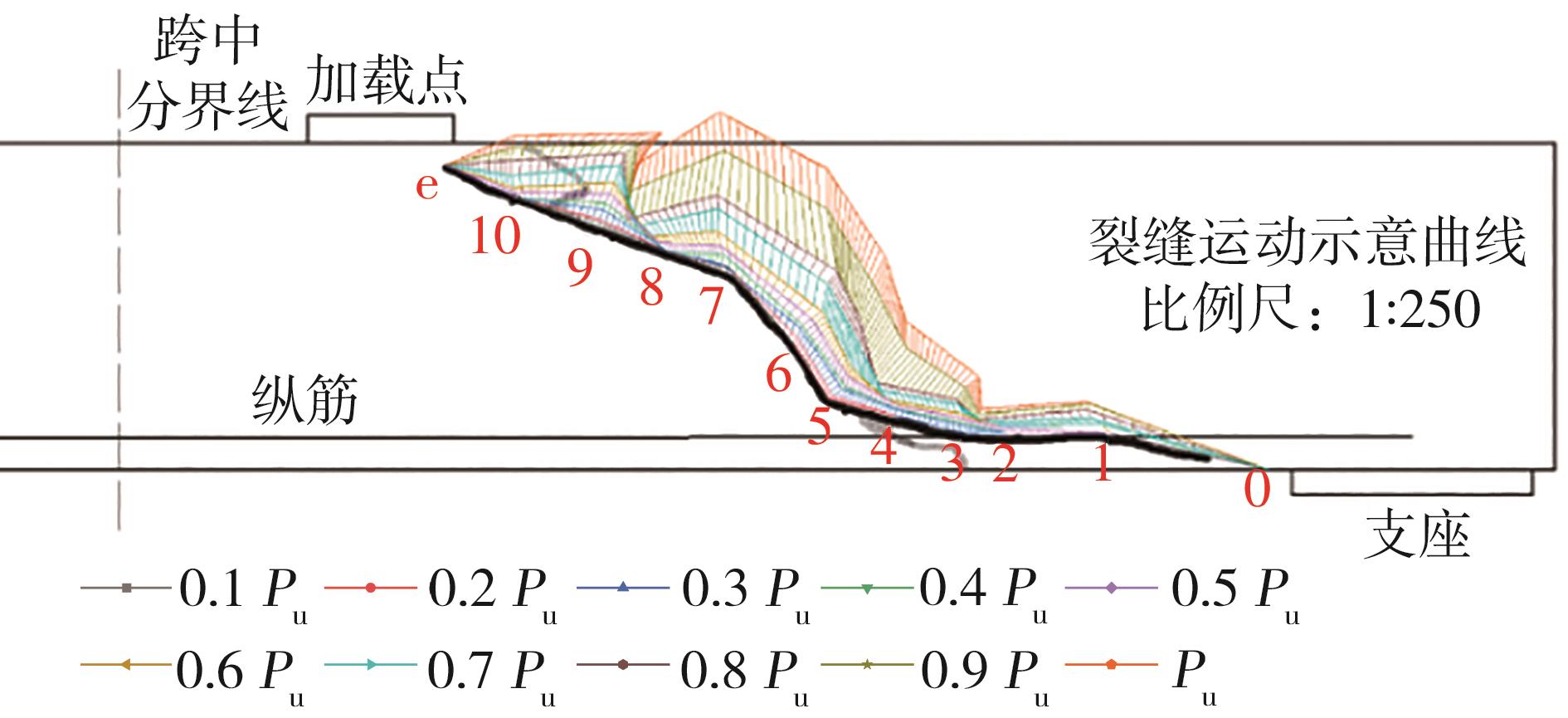

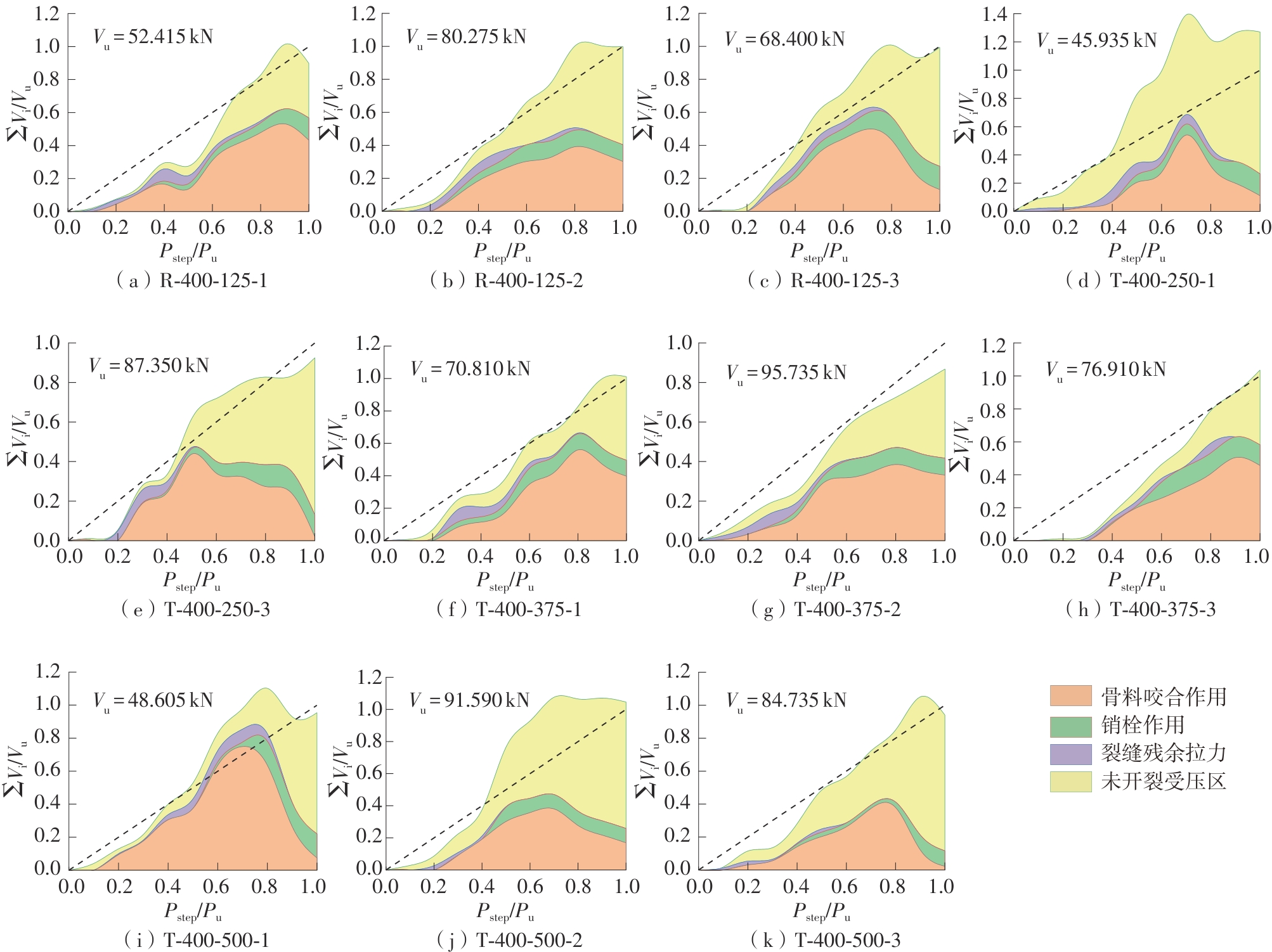

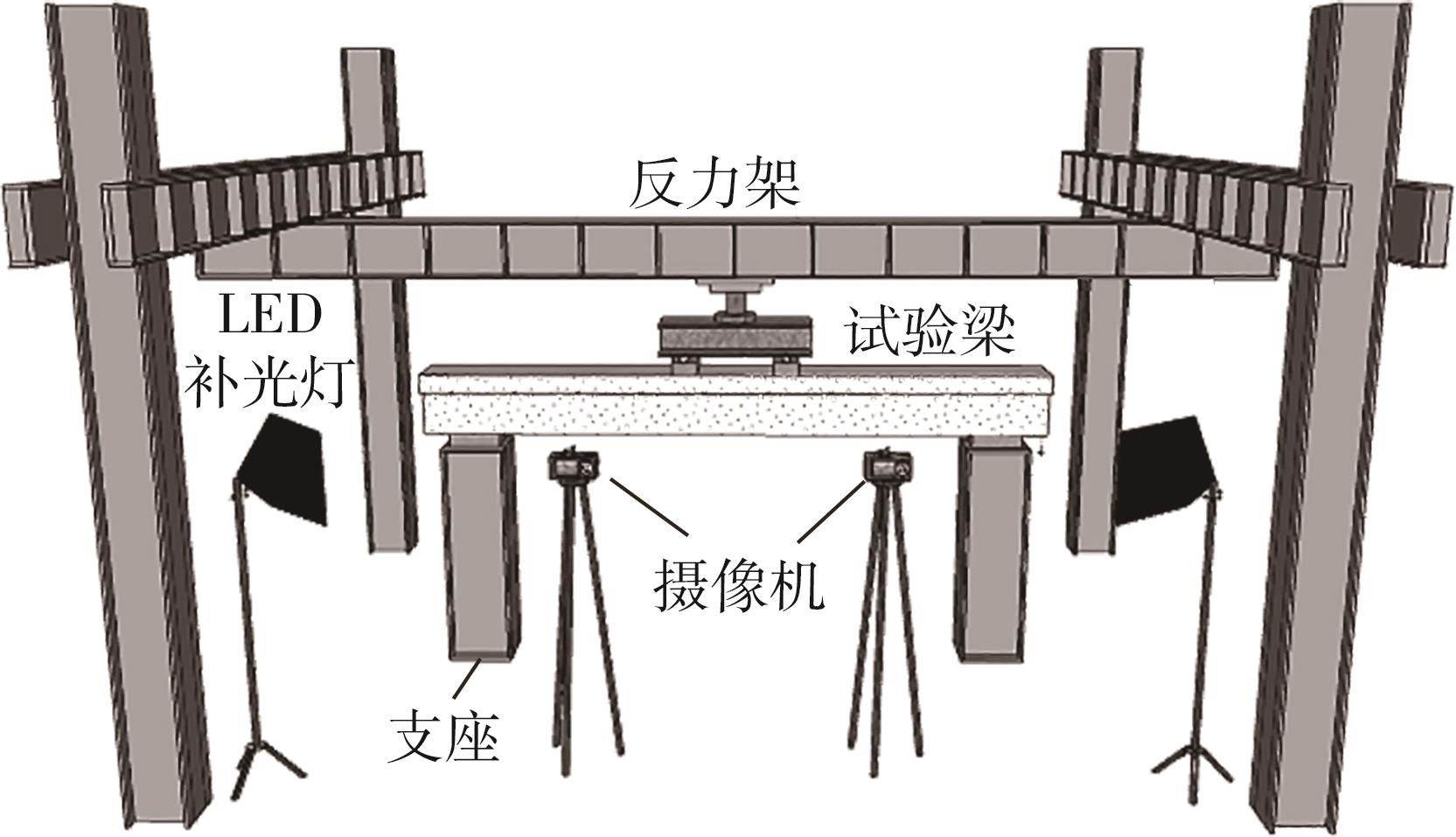

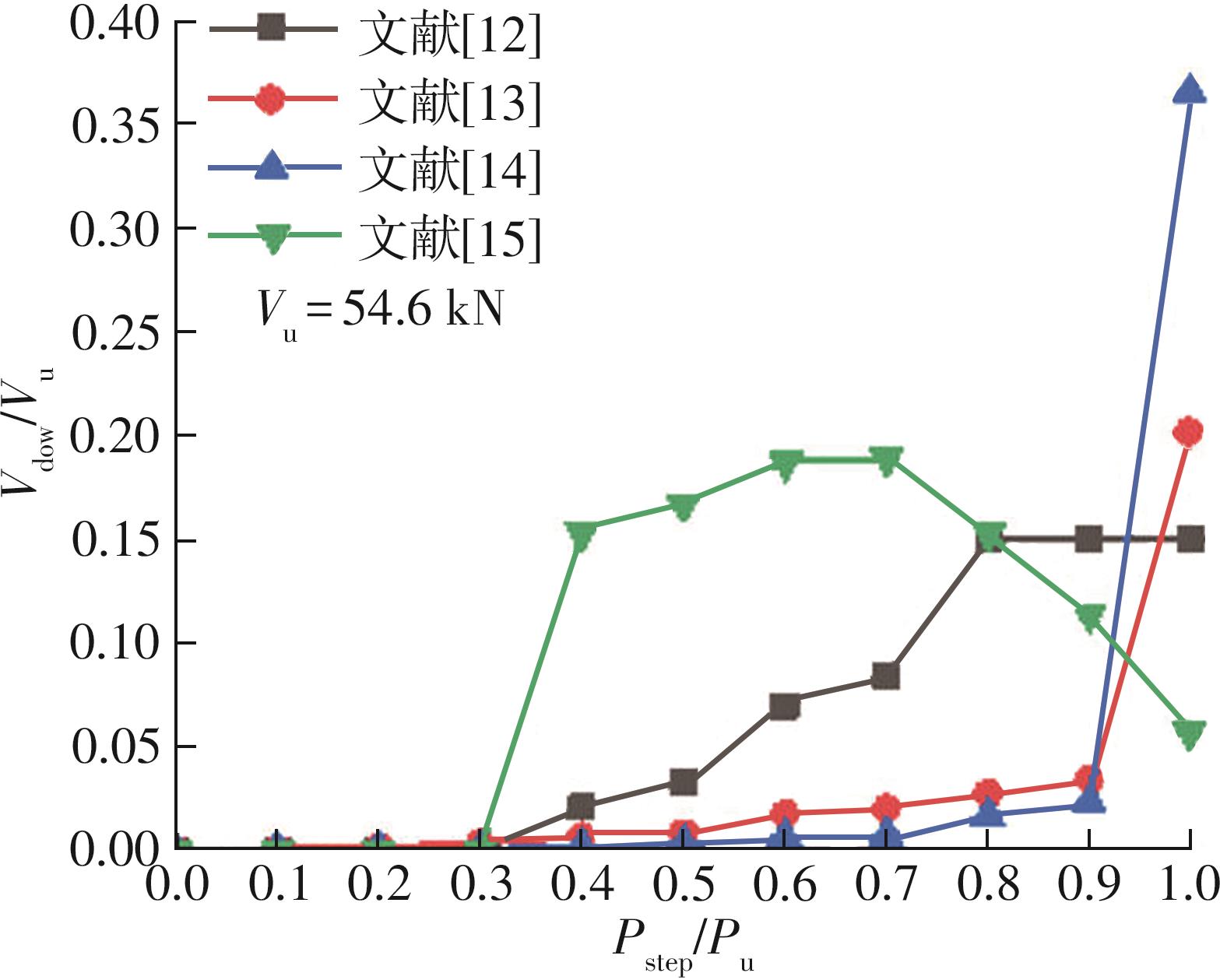

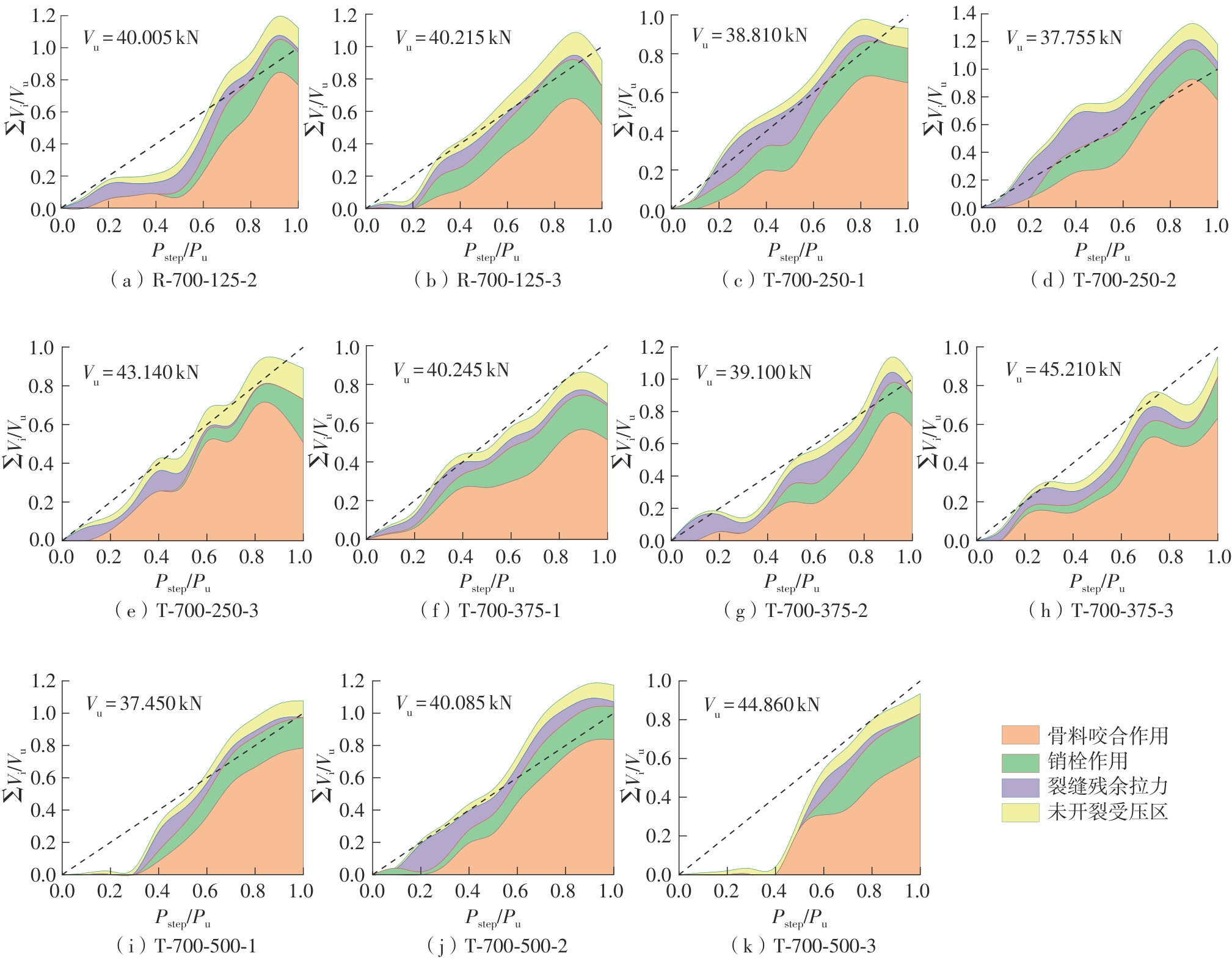

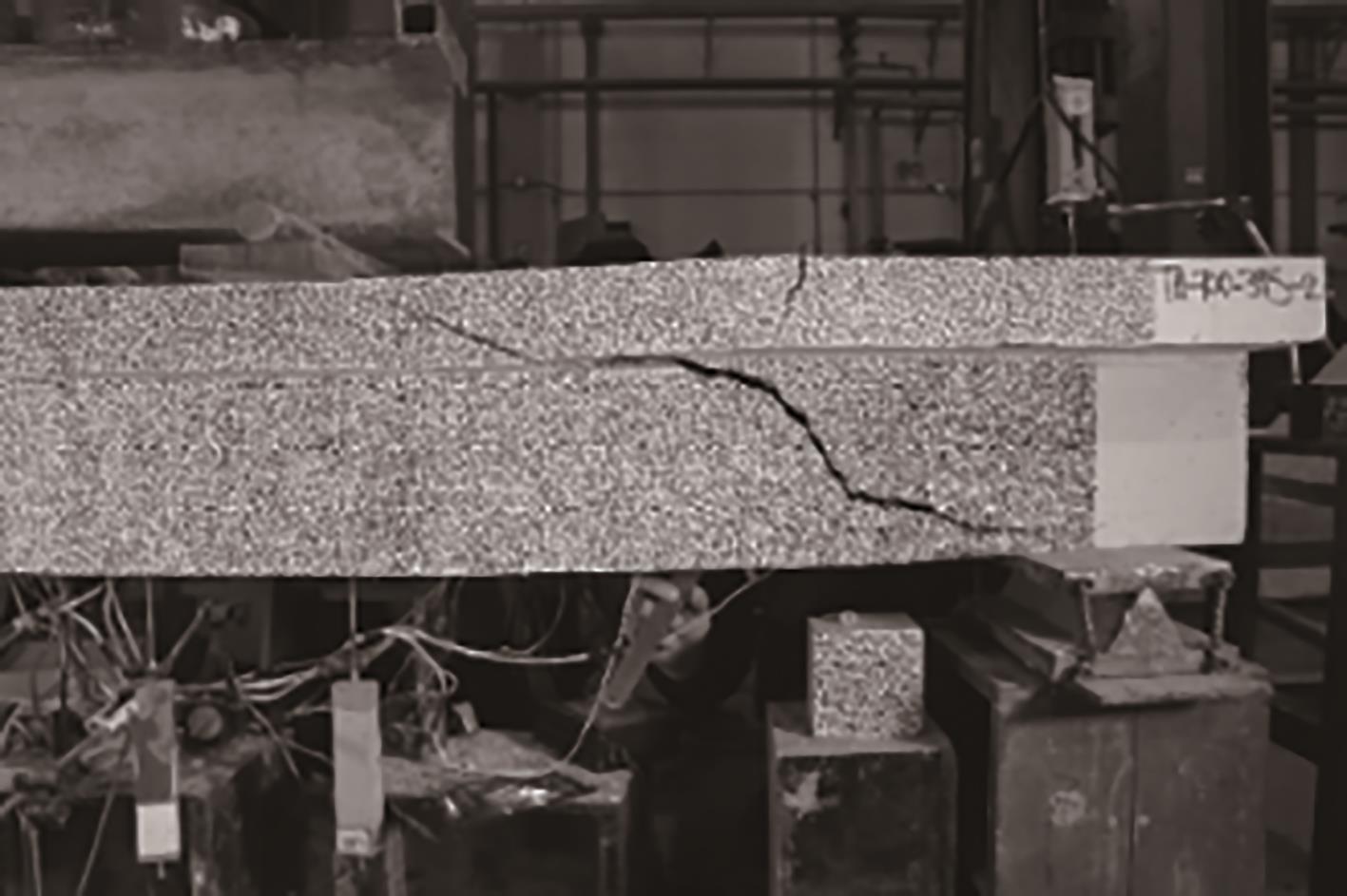

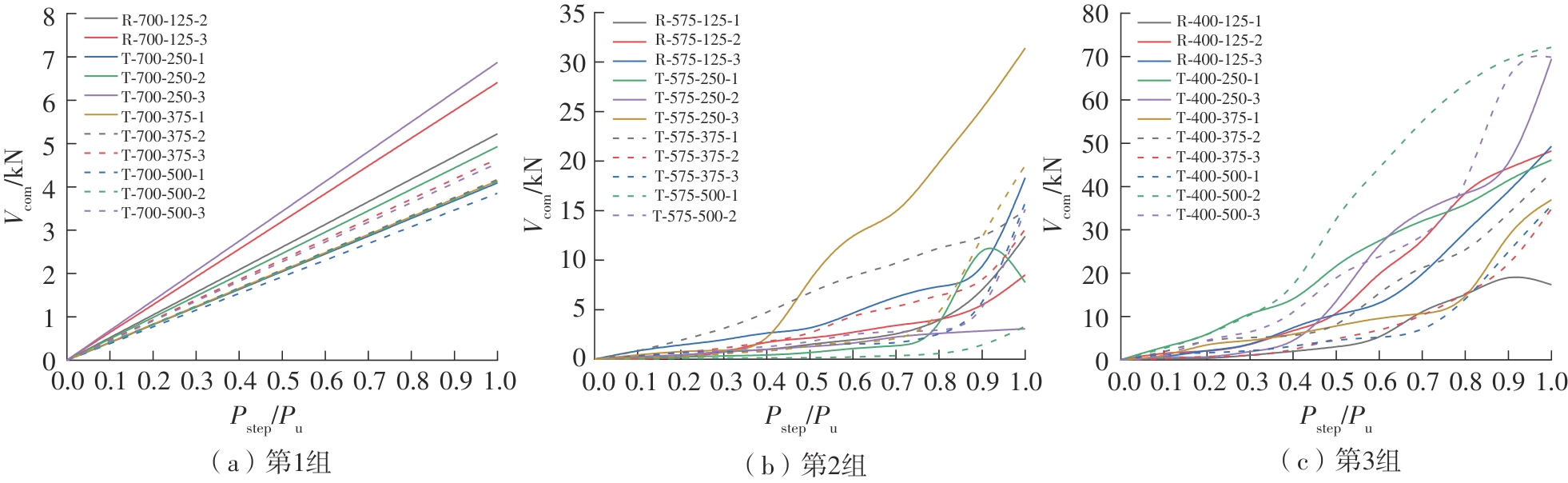

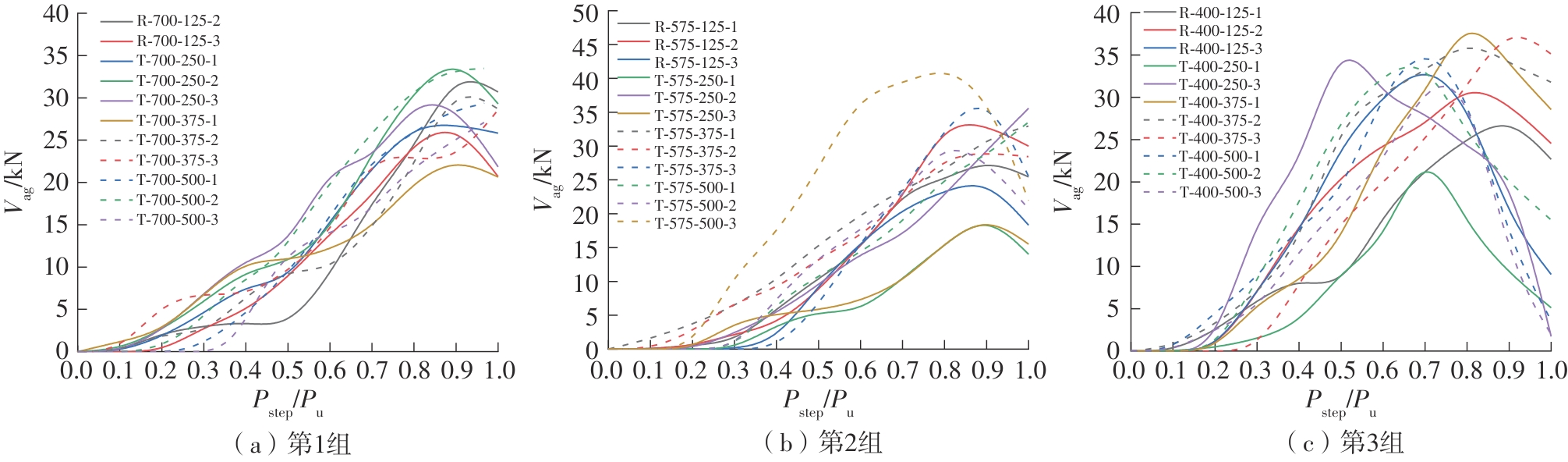

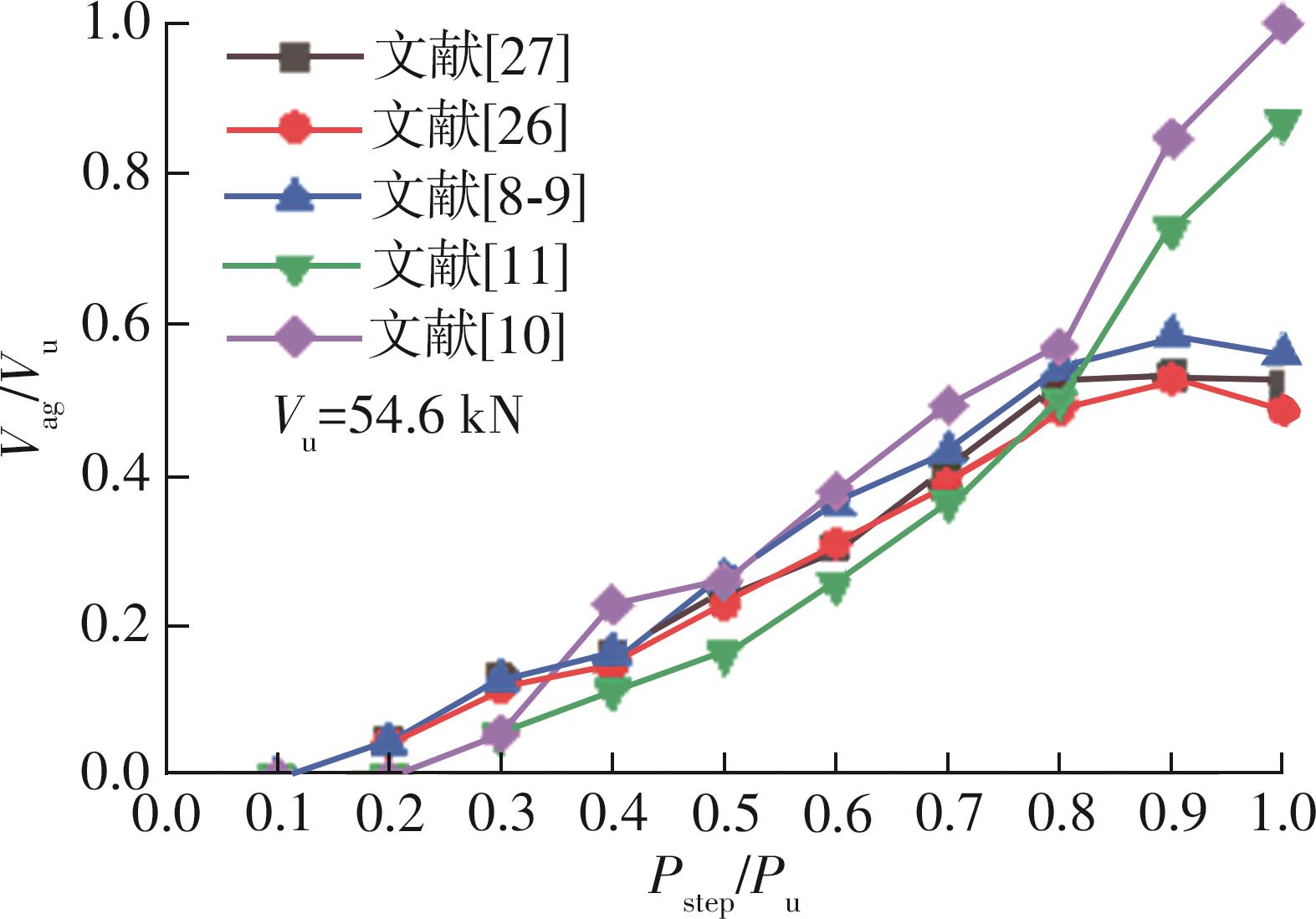

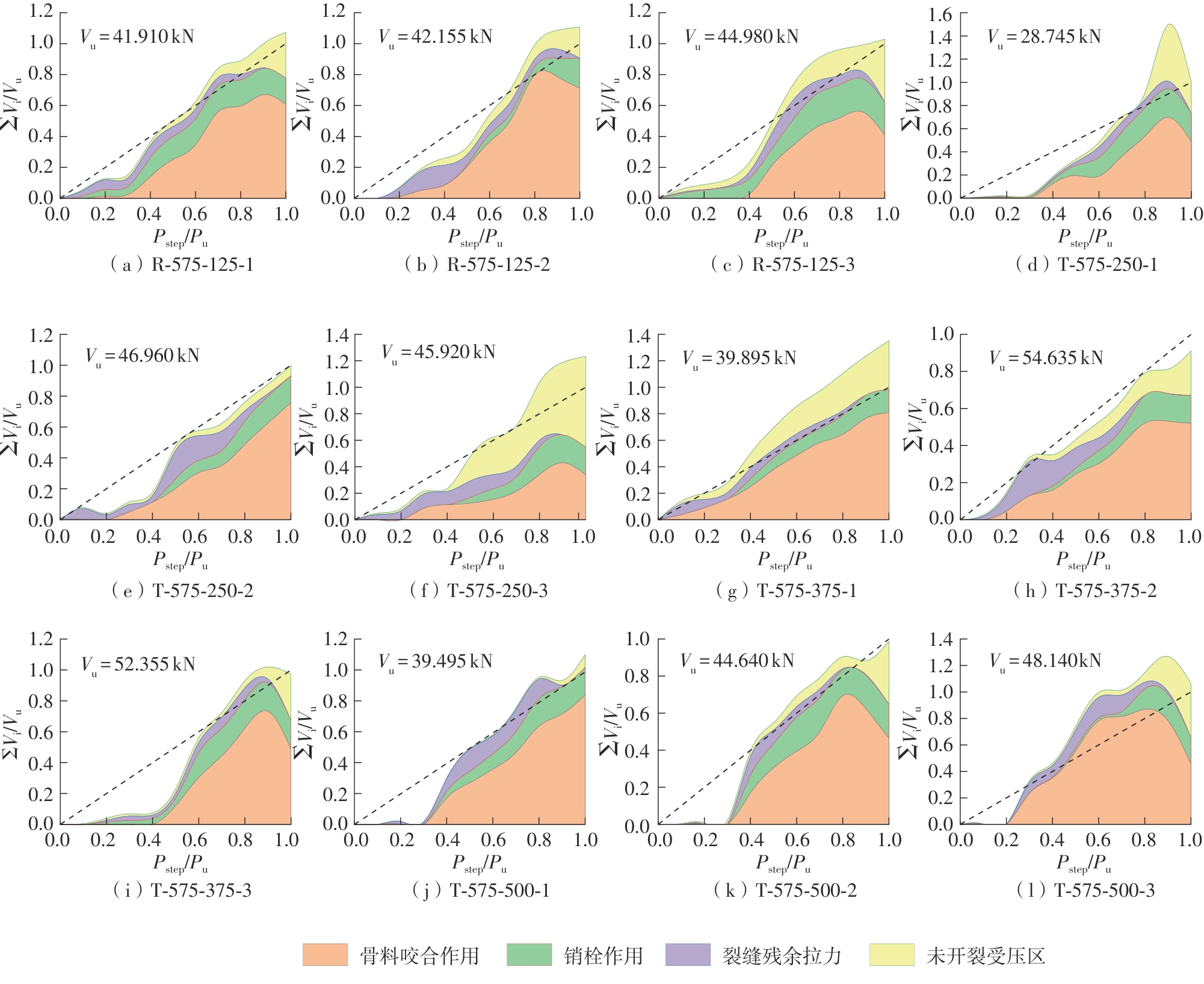

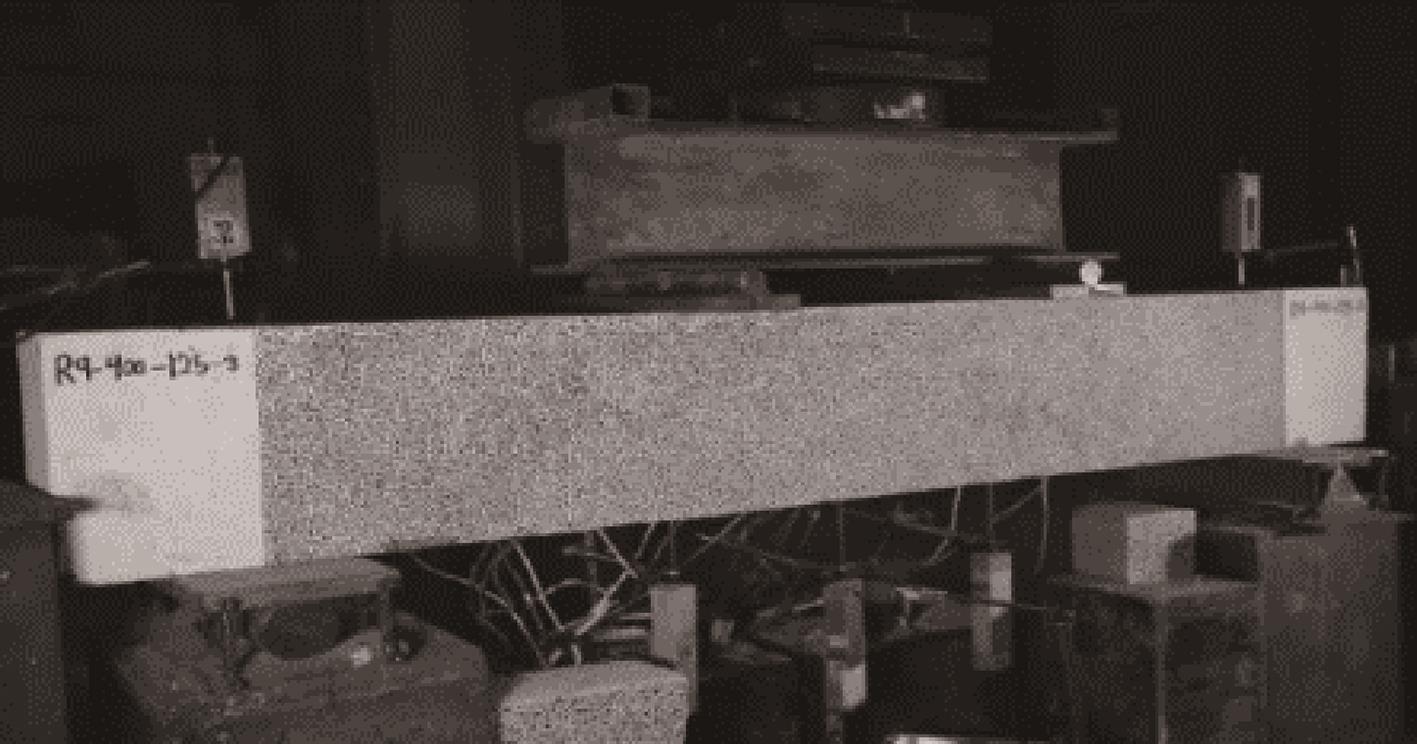

To investigate the variation in shear force transfer mechanisms of reinforced concrete (RC) beams without stirrups, 9 rectangular-section and 27 T-section RC beams without stirrups were designed, fabricated, and tested. Displacements and strain data were collected using digital image correlation (DIC), displacement transdu-cers, and strain gauges. Kinematic images of critical shear cracks were plotted, and the contributions of four shear transfer mechanisms—aggregate interlock, dowel action, residual tensile stress across cracks, and shear resistance of the uncracked compression zone—were quantified throughout the loading process. The evolution of these mechanisms during loading was analyzed. The results indicate that the number, development, and height of shear cracks exhibit a complex coupling effect on the four shear force transfer mechanisms; aggregate interlock generally reaches its maximum contribution at approximately 0.9 P_u (where P_u is the peak load), and its calculated shear resistance varies little with the shear-span ratio; however, its proportional contribution decreases as the shear-span ratio decreases; dowel action remains relatively stable throughout loading, yet its relative contribution diminishes as the overall shear capacity increases. Residual tensile stresses across cracks contribute primarily in the early loading stage and diminish to zero at peak load due to full crack development. The shear capacity provided by the uncracked compression zone is influenced by multiple factors, most notably the shear-span ratio—the shear capacity in beams with small shear-span ratios can be more than twice that in beams with large shear-span ratios. At peak load, aggregate interlock is the dominant shear force transfer mechanism in beams with larger shear-span ratios. However, as the shear-span ratio decreases, the contribution of the uncompressed concrete zone increases rapidly and becomes the predominant mechanism.

Key words: reinforced concrete beams without stirrups, shear failure, aggregate interlock, dowel action, residual tensile stress across cracks, uncracked compression zone

CLC Number:

TU375.1

FU Chongyang, XIONG Ergang, LI Sifeng, LIU Fengwei, YU Jiatong. Analysis of Shear Force Transfer Mechanism of Reinforced Concrete Beams Without Stirrups[J]. Journal of South China University of Technology(Natural Science Edition), 2025, 53(12): 82-93.

Figures/Tables 17

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

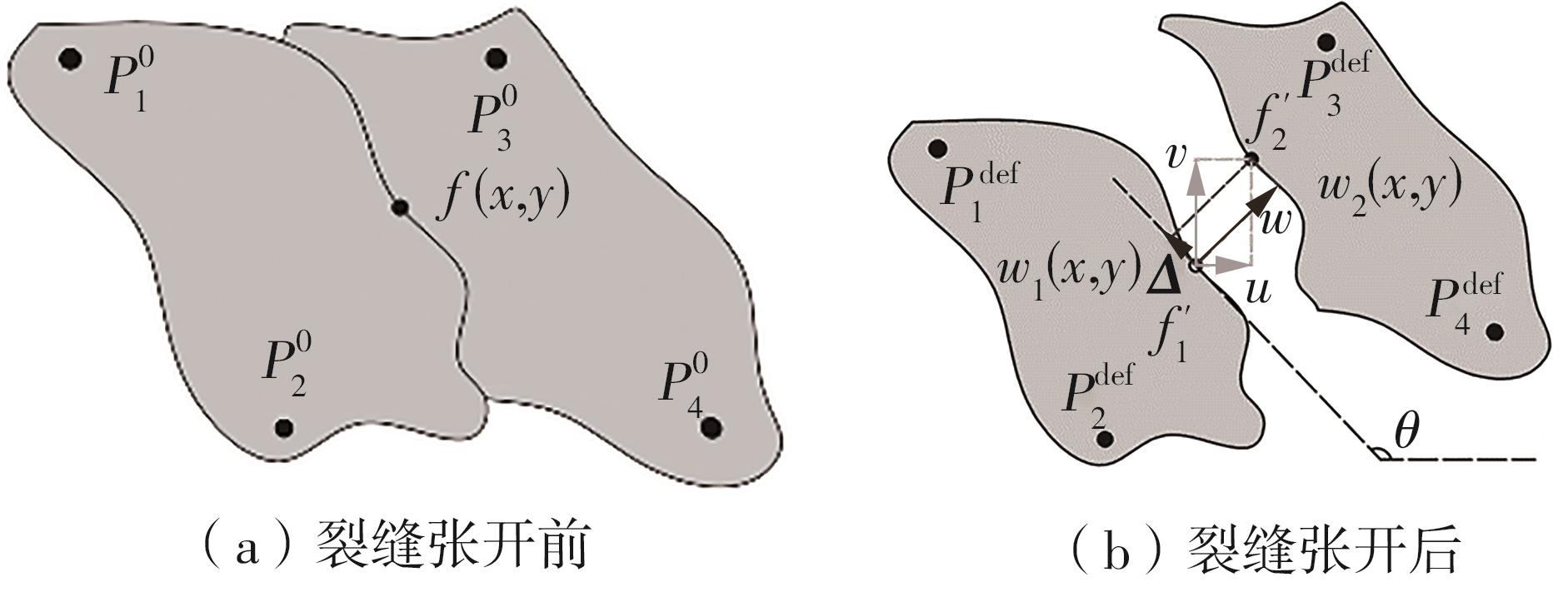

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

Fig.16

Fig.17

References 27

[1]	RITTER W ．die bauweise Hennebique（Hennebiques construction method）［J］．Zürich：Schweizerische Bauzeirung，1899，33（7）：59-61.
[2]	MIHAYLOV B I ．Five-spring model for complete shear behaviour of deep beams［J］．Structural Concrete，2015，16（1）：71-83.
[3]	MARÍ A， BAIRÁN J， CLADERA A，et al ．Shear-flexural strength mechanical model for the design and assessment of reinforced concrete beams［J］．Structure and Infrastructure Engineering，2015，11（11）：1399-1419.
[4]	MARÍ A， BAIRÁN J M， CLADERA A，et al ．Shear design and assessment of reinforced and prestressed concrete beams based on a mechanical model［J］．Journal of Structural Engineering，2016，142（10）：04016064/1-63.
[5]	CHOI K， KIM J C， PARK H G ．Shear strength model of concrete beams based on compression zone failure mechanism［J］．ACI Structural Journal，2016，113（5）：1095-1106.
[6]	YANG Y G， den UIJL J， WALRAVEN J ．Critical shear displacement theory：on the way to extending the scope of shear design and assessment for members without shear reinforcement［J］．Structural Concrete，2016，17（5）：790-798.
[7]	YANG Y G， WALRAVEN J， den UIJL J ．Shear behavior of reinforced concrete beams without transverse reinforcement based on critical shear displacement［J］．Journal of Structural Engineering，2016，143（1）：04016146/1-13.
[8]	WALRAVEN J C ．Aggregate Interlock：a theoretical and experimental analysis［D］．Delft：Delft University of Technology，1980.
[9]	WALRAVEN J C ．Fundamental analysis of aggregate interlock［J］．Journal of the Structural Division，1981，107（11）：2245-2270.
[10]	LI B， MAEKAWA K， OKAMURA H ．Contact density model for stress transfer across cracks in concrete［J］．Journal of Faculty of Engineering the University of Tokyo，1989，40（1）：9-52.
[11]	GAMBAROVA P G， KARAKOC C ．A new approach to the analysis of the confinement role in regularly cracked concrete elements［C］∥ Proceedings of the Transactions of the 7th International Conference on Structural Mechanics in Reactor Technology．New York：Elsevier Science Publishing，1983：251-261.
[12]	BAUMANN T， RÜSCH H ．Versuche zum studium der verdübelungswirkung der biegezugbewehrung eines stahlbetonbalkens［M］．Berlin：Ernst & Sohn，1970：43-83.
[13]	CAVAGNIS F， RUIZ M F， MUTTONI A ．An analysis of the shear-transfer actions in reinforced concrete members without transverse reinforcement based on refined experimental measurements［J］．Structural Concrete，2018，19（1）：49-64.
[14]	HE X G， KWAN A K H ．Modeling dowel action of reinforcement bars for finite element analysis of concrete structures［J］．Computers & Structures，2001，79（6）：595-604.
[15]	WALRAVEN J C， REINHARDT H W ．Theory and experiments on the mechanical behaviour of cracks in plain and reinforced concrete subjected to shear loading［J］．Heron，1981，26（1A）：5-68.
[16]	Fib ．Fib Bulletin No.57：Shear and punching shear in RC and FRC elements［R］．Lausanne：International Federation for Structural Concrete，2010.
[17]	HORDIJK D A ．Local approach to fatigue of concrete［D］．Delft：Delft University of Technology，1991.
[18]	HORDIJK D A ．Tensile and tensile fatigue behaviour of concrete；experiments，modelling and analysis［J］．Heron，1992，37（1）：3-79.
[19]	CAMPANA S， RUIZ M F， ANASTASI A，et al ．Analysis of shear-transfer actions on one-way RC members based on measured cracking pattern and failure kinematics［J］．Magazine of Concrete Research，2013，65（6）：386-404.
[20]	HUBER P， HUBER T， KOLLEGGER J ．Investigation of the shear behavior of RC beams on the basis of measured crack kinematics［J］．Engineering Structures，2016，113：41-58.
[21]	YANG Y G ．Shear behaviour of reinforced concrete members without shear reinforcement［D］．Delft：Delft University of Technology，2014.
[22]	FENWICK R C， PAULAY T ．Mechanisms of shear resistance of concrete beams［J］．Journal of the Structural Division，1968，94（10）：2325-2350.
[23]	KANI M W， HUGGINS M W， WITTKOPP R R ．Kani on shear in reinforced concrete［M］．Toronto：University of Toronto Press，1979.
[24]	MUTTONI A， THÜRLIMANN B ．Schubversuche an balken und flachdecken ohne schubbewehrung［R］．Zürich：Institut fürBaustatik und Konstruktion，1986.
[25]	RODRIGUE R V ．Influence of yielding of flexural reinforcement on shear transfer through cracks［J］．Magazine of Concrete Research，2012，64（9）：751-765.
[26]	ULAGA T ．Betonbauteile mit stab-und lamellenbewehrung：verbund-und zuggliedmodellierung［D］．Zurich：Eidgenössische Technische Hochschule Züric，2003.
[27]	GUIDOTTI R ．Poinçonnement des planchers-dalles avec colonnes superposées fortement sollicitées［D］．Lausanne：Ecole Polytechnique Fédérale de Lausanne，2010.
