Bistable Behaviors of Composite Thin Cylindrical Shell in Complex Environment

doi:10.12141/j.issn.1000-565X.240353

Abstract

Abstract:

Bistable composite structures are a novel type of deployable structure widely used across various fields. However, in complex service environments, changes in material properties may occur, which can in turn affect the bistable characteristics of the structure. By integrating theoretical and numerical studies, this study established a theoretical model of a composite cylindrical shell structure incorporating thermal and hygrothermal expansion coefficients. And it derived an analytical expression for the strain energy of the cylindrical shell under complex environmental conditions. Based on the principle of minimum potential energy, a bistable theoretical model considering the effects of temperature and humidity was developed. The influence of environmental parameters on the second stable-state strain energy, principal curvature, and twist curvature of cylindrical shells made from T700/Epoxy, T300/5028 Graphite-Epoxy, and AS7/M21 carbon fiber/epoxy composites was investigated. Using ABAQUS software, a finite element model of the cylindrical shell was built to numerically simulate the bistable deformation process, and the variations in second stable-state strain energy, principal curvature, and twist curvature under different temperature and humidity conditions were obtained. The numerical results were compared with the theoretical predictions. The results show that under temperature ranges of 20 ℃ to 120 ℃ and humidity levels from 0.0 to 1.0%, the maximum strain energy decreases by up to 32.7% and 9.1% for T700/Epoxy and AS7/M21, respectively, while the strain energy of T300/5028 Graphite-Epoxy increases by up to 914.6%. The principal curvatures of T700/Epoxy and T300/5028 Graphite-Epoxy show high sensitivity to temperature, with maximum increases of approximately 17% and 14%, respectively, whereas AS7/M21 exhibits variations of less than 5%. In terms of anti-twisting performance, T700/Epoxy and T300/5028 experience significant fluctuations under high temperature and humidity, while AS7/M21 maintains good stability. The combination of theoretical analysis and numerical simulation indicates that high temperature and humidity significantly affect the bistable performance of composite structures. By quantitatively analyzing the mechanical properties of composite materials under different temperature and humidity conditions, a scientific basis can be provided for material selection and environmental optimization of bistable structures, thereby contributing to improved reliability and durability in structural design.

Key words: bistable, composite, cylindrical shell structure, complex environment, curvature

CLC Number:

O342

WU Yaopeng, YANG Quan, LIU Ying. Bistable Behaviors of Composite Thin Cylindrical Shell in Complex Environment[J]. Journal of South China University of Technology(Natural Science Edition), 2025, 53(7): 139-148.

Figures/Tables 10

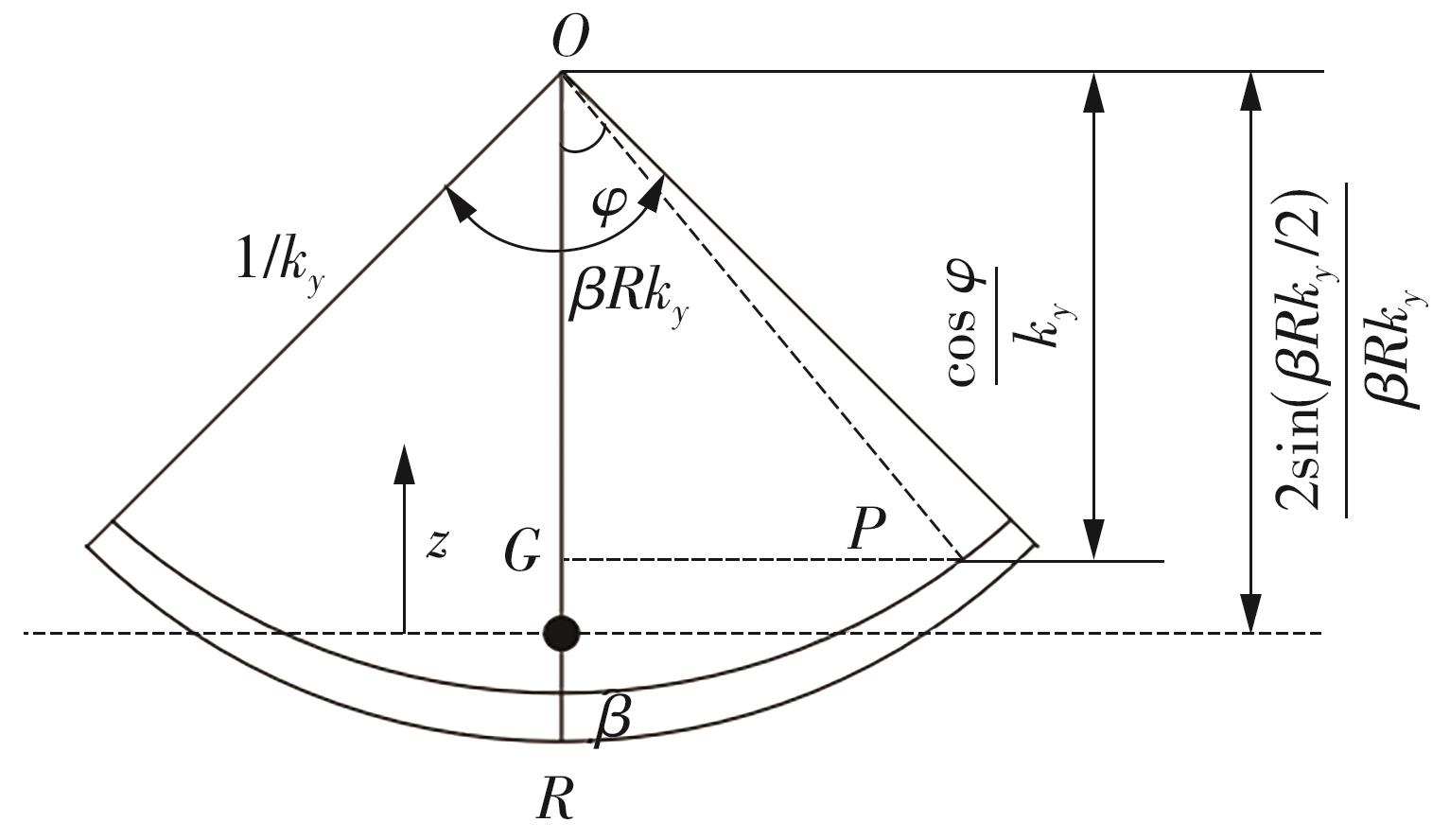

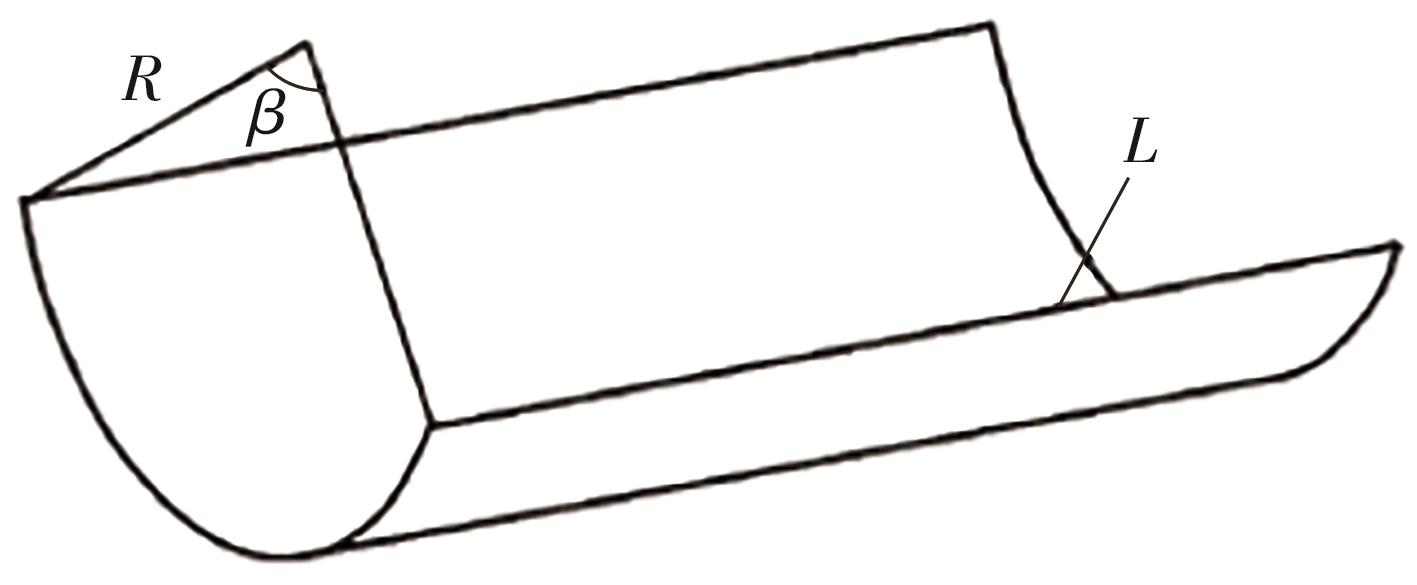

Fig.1

Fig.2

Table 1

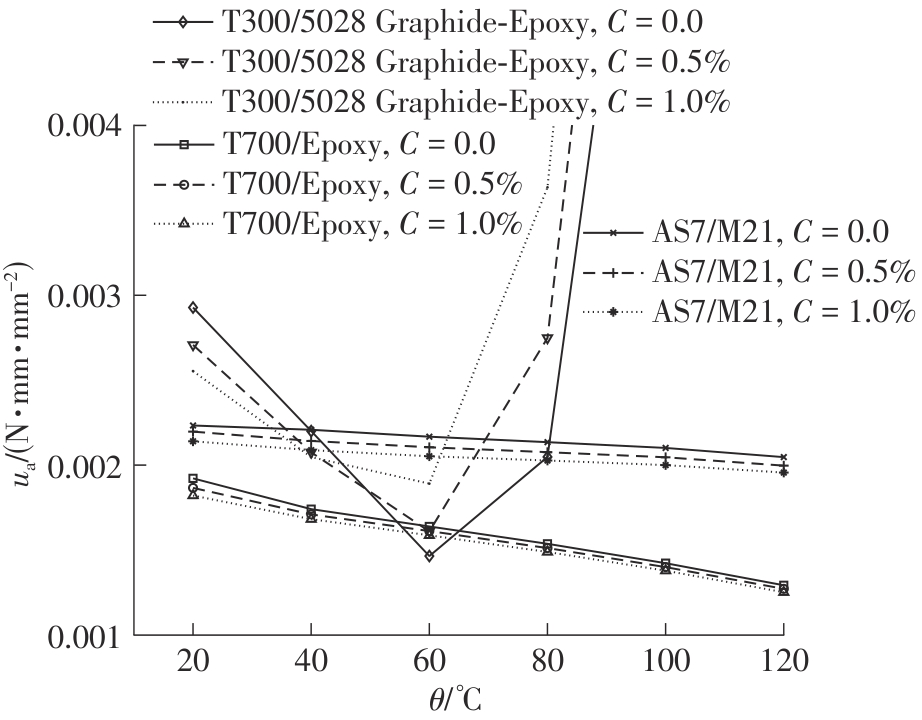

Fig.3

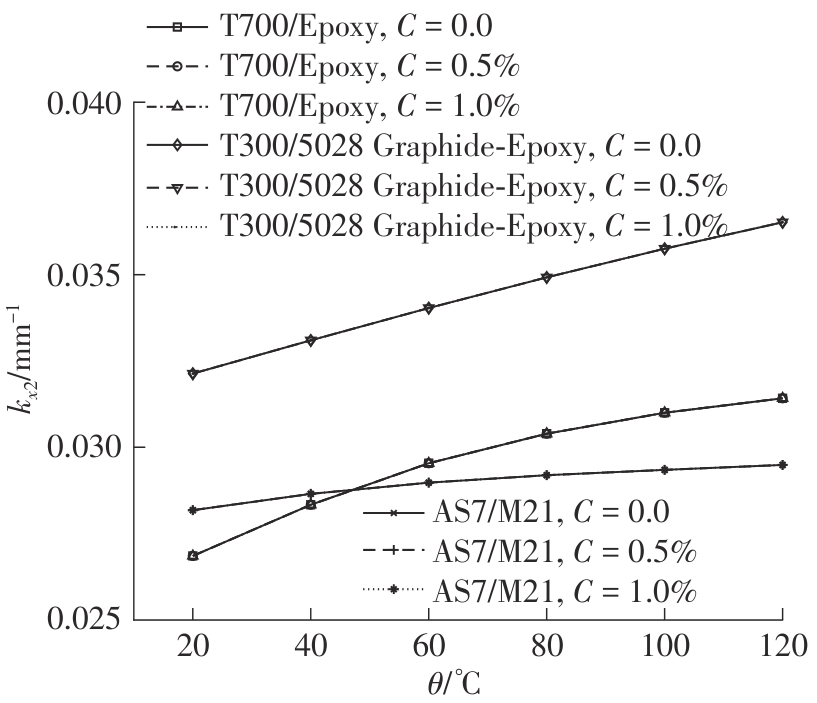

Fig.4

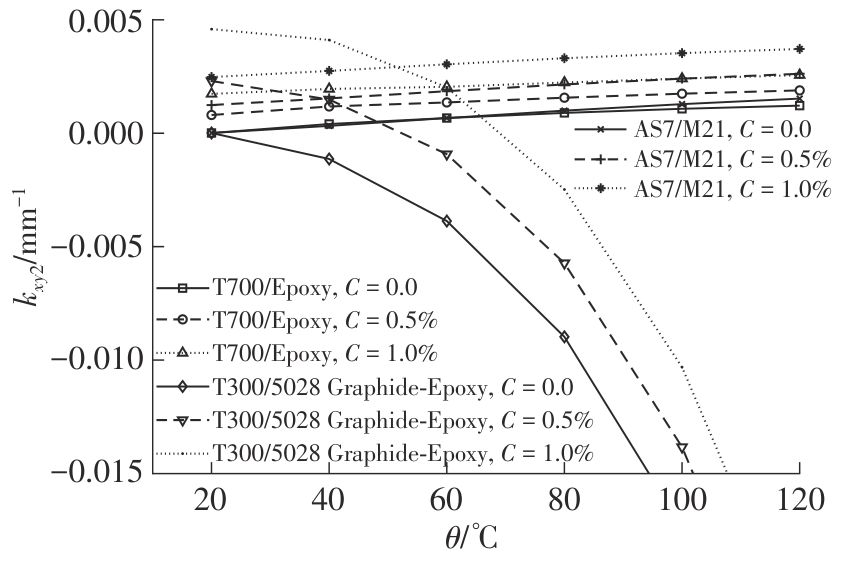

Fig.5

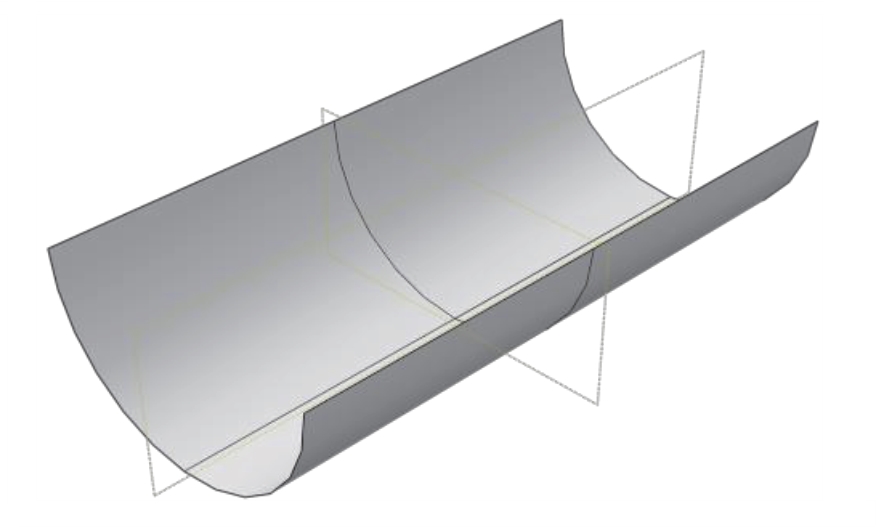

Fig.6

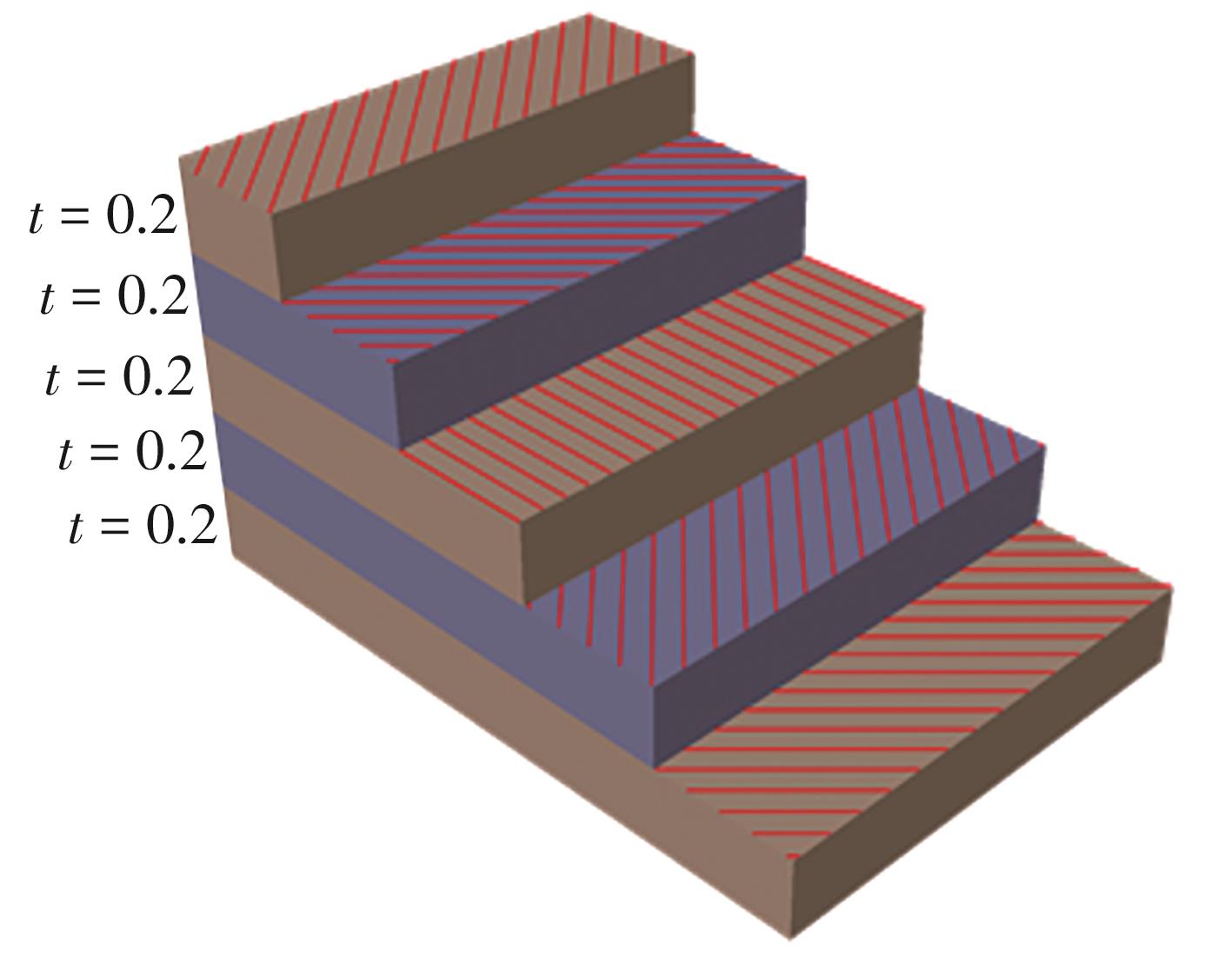

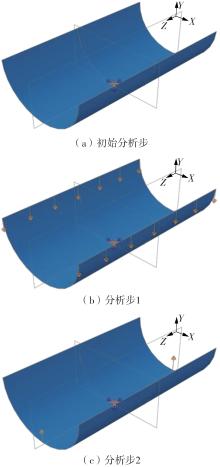

Fig.7

Fig.8

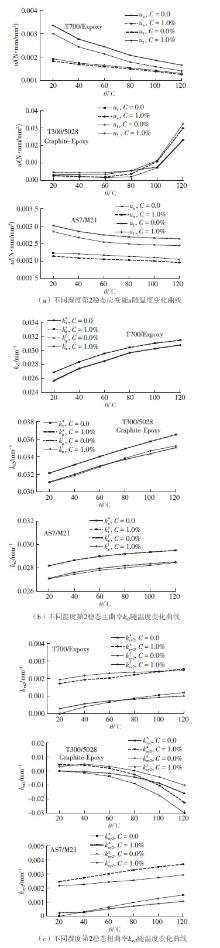

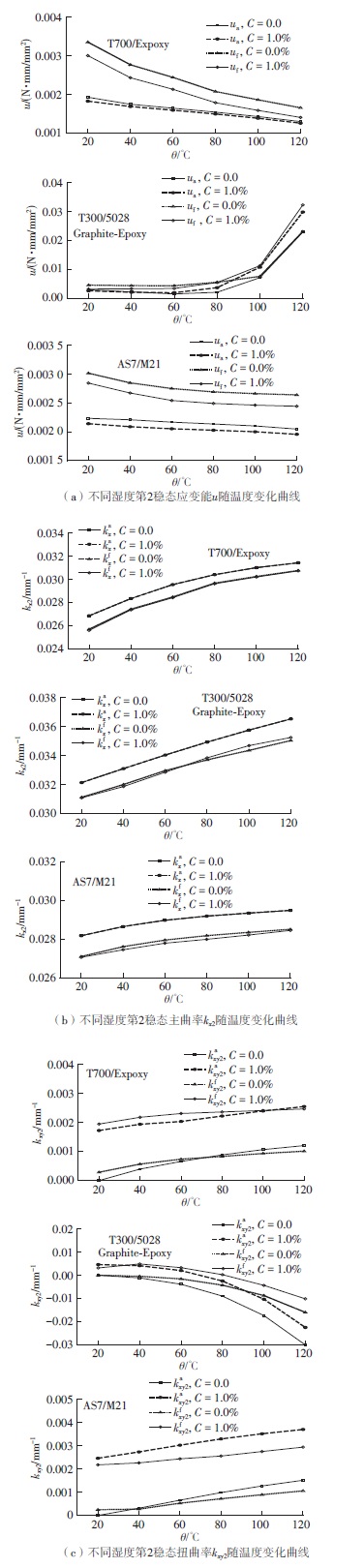

Fig.9

References 19

[1]	DANO M L， HYER M W ．Thermally-induced deformation behavior of unsymmetric laminates［J］．International Journal of Solids and Structures，1998，35（17）：2101-2120.
[2]	丁江，卢蒙恩，曾梓洋，等．一种可调谐非线性磁式压电能量采集器［J］．华南理工大学学报（自然科学版），2023，51（9）：30-43，68.
	DING Jiang， LU Mengen， ZENG Ziyang，et al ．A tunable nonlinear magnetic piezoelectric energy harvester［J］．Journal of South China University of Technology （Natural Science Edition），2023，51（9）：30-43，68.
[3]	DATON-LOVETT A ．An extendible member：US6217975［P］．2001-04-17.
[4]	IQBAL K， PELLEGRINO S， DATON-LOVETT A ．Bi-stable composite slit tubes［C］∥Proceedings of IUTAM-IASS Symposium on Deployable Structures：Theory and Applications．Dordrecht：Springer，2000：153-162.
[5]	GALLETLY D A， GUEST S D ．Bistable composite slit tubes（I）：a beam model［J］．International Journal of Solids and Structures，2004，41（16）：4517-4533.
[6]	KEBADZE E， GUEST S D， PELLEGRINO S ．Bistable prestressed shell structures［J］．International Journal of Solids and Structures，2004，41（11）：2801-2820.
[7]	GUEST S D， PELLEGRINO S ．Analytical models for bistable cylindrical shells［J］．Proceedings of the Royal Society A：Mathematical，Physical and Engineering Science，2006，462（2067）：839-854.
[8]	ZHANG Z， WU H， HE X，et al ．The bistable behaviors of carbon-fiber/epoxy anti-symmetric composite shells［J］．Composites Part B：Engineering，2013，47：190-199.
[9]	BRAMPTON C J， BETTS D N， BOWEN C R，et al ．Sensitivity of bistable laminates to uncertainties in material properties，geometry and environmental conditions［J］．Composite Structures，2013，102：276-286.
[10]	张焕青，柴国钟，张征，等．反对称铺设复合材料圆柱壳双稳态特性的温度影响理论模型与数值分析［J］．机电工程，2018，35（12）：1273-1278，1309.
	ZHANG Huan-qing， CHAI Guo-zhong， ZHANG Zheng，et al ．Theoretical model and numerical analysis of thermal effects on bistable characteristics of anti-symmetrical composite cylindrical shells［J］．Journal of Mechanical ＆ Electrical Engineering，2018，35（12）：1273-1278，1309.
[11]	GIDDINGS P F， BOWEN C R， SALO A I T，et al ．Bistable composite laminates：effects of laminate composition on cured shape and response to thermal load［J］．Composite Structures，2010，92（9）：2220-2225.
[12]	CHOI H S， AHN K J， J-D NAM，et al ．Hygroscopic aspects of epoxy/carbon fiber composite laminates in aircraft environments［J］．Composites Part A：Applied Science and Manufacturing，2001，32（5）：709-720.
[13]	CHILLARA V S C， DAPINO M J ．Mechanically-prestressed bistable composite laminates with weakly coupled equilibrium shapes［J］．Composites Part B：Engineering，2017，111：251-260.
[14]	FAZLI M， SADR M H， GHASHOCHI-BARGH H ．Analysis of bi-stable hexagonal composite laminate under thermal load［J］．Applied Composite Materials，2021，28（4）：1067-1087.
[15]	张征，潘豪，叶钢飞，等．温度对T700/3234反对称铺设圆柱壳结构的双稳态特性影响［J］．航空材料学报，2016，36（5）：70-76.
	ZHANG Zheng， PAN Hao， YE Gangfei，et al ．Thermal effect on bistable behaviour of T700/3234 anti-symmetric cylindrical shells［J］．Journal of Aeronautical Materials，2016，36（5）：70-76.
[16]	ZHANG T J， LI S L， CHANG F，et al ．An experimental and numerical analysis for stiffened composite panel subjected to shear loading in hygrothermal environment［J］．Composite Structures，2016，138：107-115.
[17]	FUJIOKA E， YOKOZEKI T， WATANABE A，et al ．Analysis on temperature-dependent deployment behavior of bi-stable composite rods［J］．Advanced Composite Materials，2018，28（3）：245-257.
[18]	HYER M W， HERAKOVICH C T， MILKOVICH S M，et al ．Temperature dependence of mechanical and thermal expansion properties of T300/5208 graphite/epoxy［J］．Composites，1983，14（3）：276-280.
[19]	ECKSTEIN E， PIRRERA A， WEAVER P M ．Multi-mode morphing using initially curved composite plates［J］．Composite Structures，2014，109：240-245.

材料名称	E₁/GPa	E₂/GPa	G₁₂/GPa	ν₁₂
T700/Epoxy	108.00	7.07	5.17	0.31
AS7/M21	130.45	9.02	5.48	0.33
T300/5028	164.80	21.75	4.86	0.44
